NCJ10FI-V-0 - Neutrik

Description: XLR Connectors STEREO SWTC JACK GRD COMBO

Download NCJ10FI-V-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ10FI-V-0 - Neutrik - PCB symbol
click to zoom
PCB Footprints

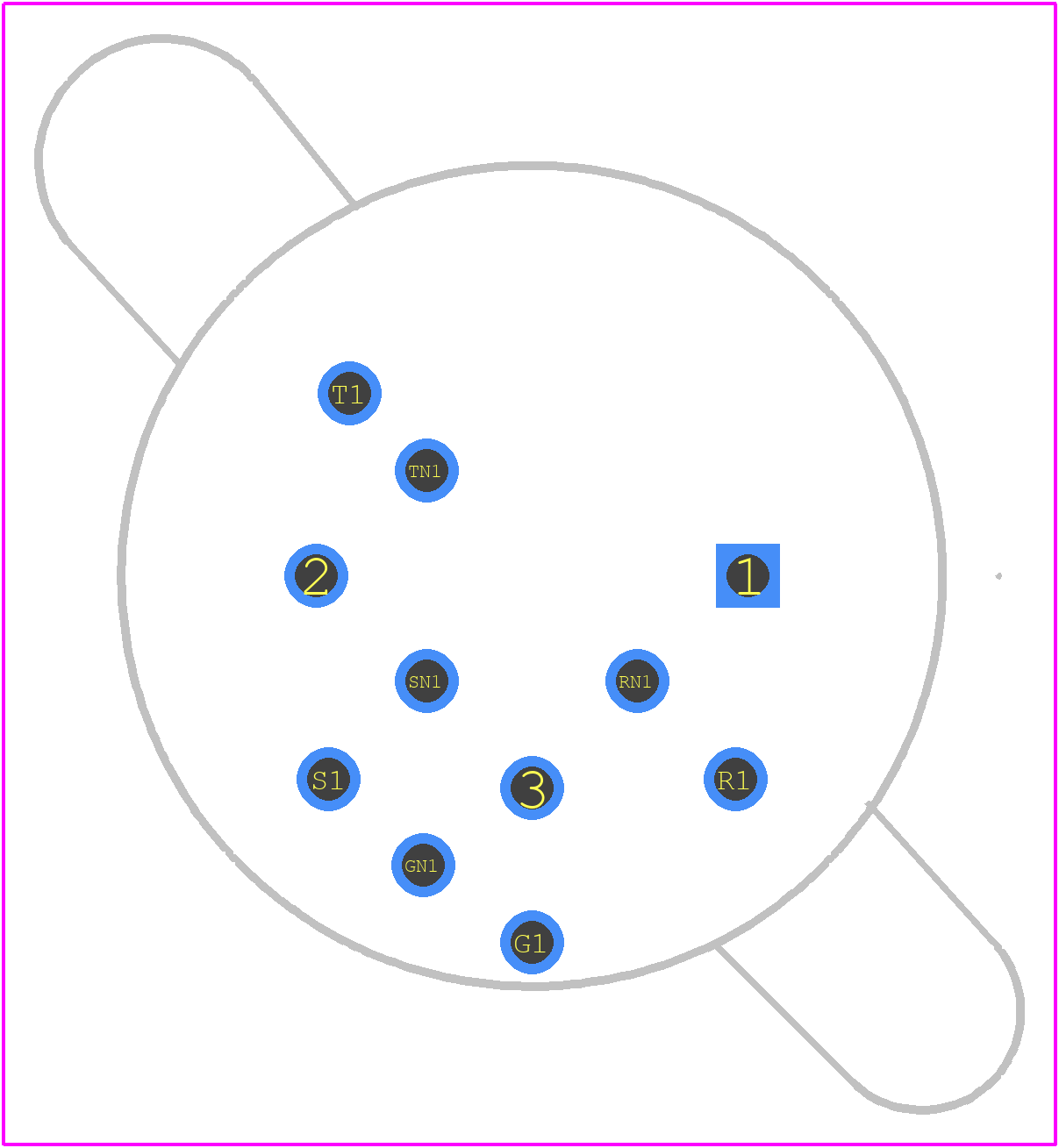

NCJ10FI-V-0 - Neutrik PCB footprint - Other - Other - NCJ10FI-V-0-2
click to zoom
3D Models
NCJ10FI-V-0 - Neutrik - 3D model - Other - NCJ10FI-V-0-2
click to zoom

NCJ10FI-V-0 Details

  • Manufacturer Part Number:

    NCJ10FI-V-0

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR AND 6.35 MM AUDIO

NCJ10FI-V-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the NCJ10FI-V-0 connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in) for the screw locks, and 1.5 Nm to 2.5 Nm (1.06 lbf.in to 1.83 lbf.in) for the hex nuts.
  • Yes, the NCJ10FI-V-0 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the NCJ10FI-V-0 connector is designed to withstand high-vibration environments, making it suitable for applications such as live sound, broadcast, and industrial installations.
  • Yes, the NCJ10FI-V-0 connector is compatible with other Neutrik XLR connectors, including the NC3FXX and NC3MXX series.
  • The operating temperature range for the NCJ10FI-V-0 connector is -30°C to +80°C (-22°F to +176°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCJ10FI-V-0 Overview

Use the download button to access the NCJ10FI-V-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCJ10, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
