NCJ6FA-H - Neutrik

Description: 3 pole XLR female receptacle with 1/4" stereo jack, horizontal PCB mount

Download NCJ6FA-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ6FA-H - Neutrik - PCB symbol
click to zoom
PCB Footprints

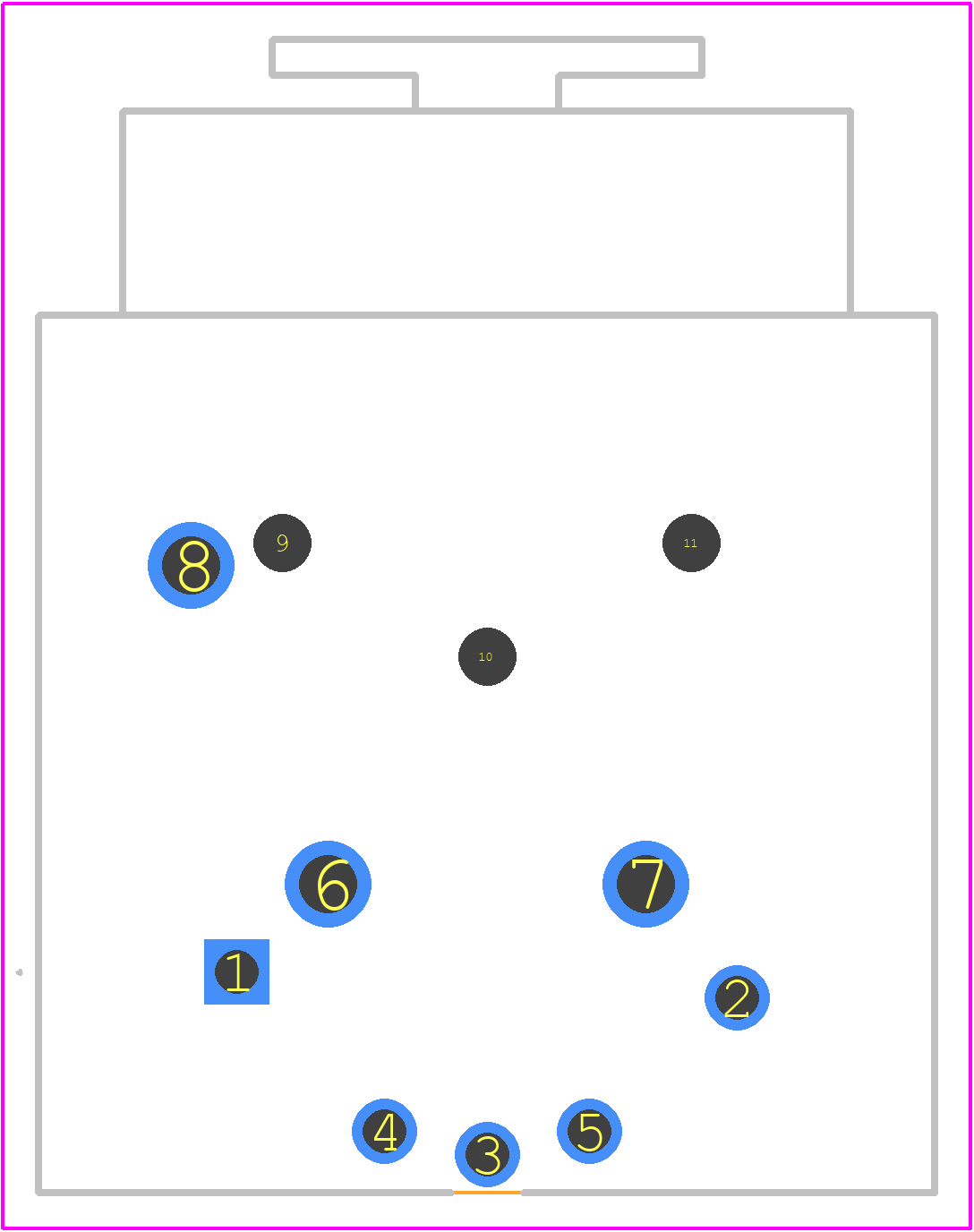

NCJ6FA-H - Neutrik PCB footprint - Other - Other - NCJ6FA-H-1
click to zoom

NCJ6FA-H Details

  • Manufacturer Part Number:

    NCJ6FA-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.80.00

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    CIRCULAR ADAPTER

  • Contact Material:

    BRONZE

NCJ6FA-H Frequently Asked Questions (FAQs)

  • The recommended torque for the NCJ6FA-H connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
  • Yes, the NCJ6FA-H connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The NCJ6FA-H connector is rated for up to 20 A, making it suitable for high-power applications. However, it's essential to ensure proper heat dissipation and follow the manufacturer's guidelines for high-current applications.
  • Yes, the NCJ6FA-H connector is designed to be compatible with other Neutrik products, including their range of XLR connectors and adapters.
  • The operating temperature range for the NCJ6FA-H connector is -20°C to 75°C (-4°F to 167°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCJ6FA-H Overview

Use the download button to access the NCJ6FA-H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCJ6F, or try a keyword search, such as Circular Adapters

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
