NCJ6FI-H-0 - Neutrik

Description: XLR Connectors COMBO STEREO JACK PC NO LATCH

Download NCJ6FI-H-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ6FI-H-0 - Neutrik - PCB symbol
click to zoom
PCB Footprints

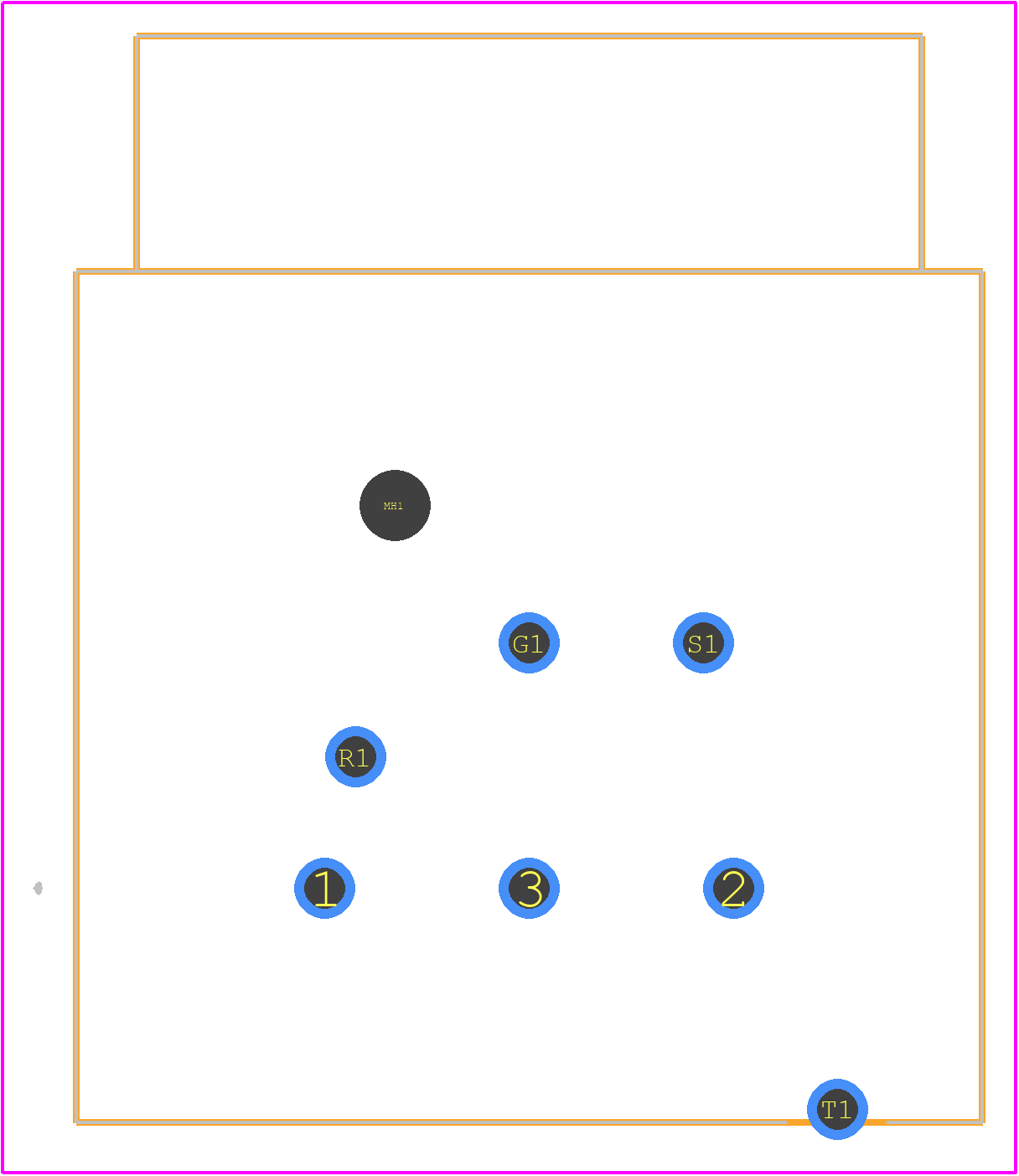

NCJ6FI-H-0 - Neutrik PCB footprint - Other - Other - NCJ6FI-H-0-2
click to zoom
3D Models
NCJ6FI-H-0 - Neutrik - 3D model - Other - NCJ6FI-H-0-2
click to zoom

NCJ6FI-H-0 Details

  • Manufacturer Part Number:

    NCJ6FI-H-0

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Audio Type:

    STEREO

  • Board Mounting Option:

    PEG

  • Body Depth:

    1.276 inch

  • Body/Shell Style:

    RECEPTACLE

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    XLR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRONZE

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    1000 Cycles

  • Insulation Resistance:

    10000000000 Ω

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    8u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    7.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

NCJ6FI-H-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the NCJ6FI-H-0 connector is 0.6 Nm (5.3 in-lbs) for the screw locks and 1.5 Nm (13.4 in-lbs) for the hex nuts.
  • Yes, the NCJ6FI-H-0 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the NCJ6FI-H-0 connector is designed to withstand high-vibration environments, making it suitable for applications such as live sound, touring, and industrial installations.
  • Yes, the NCJ6FI-H-0 connector is compatible with other Neutrik XLR connectors, including the NC3FI-H-0 and NC3MX-H-0, allowing for easy integration into existing systems.
  • The operating temperature range for the NCJ6FI-H-0 connector is -30°C to +80°C (-22°F to +176°F), making it suitable for a wide range of applications.
