NCJ6FI-V - Neutrik

Description: NEUTRIK - NCJ6FI-V - SOCKET, XLR-1/4"JACK, STRAIGHT

Download NCJ6FI-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ6FI-V - Neutrik - PCB symbol
click to zoom

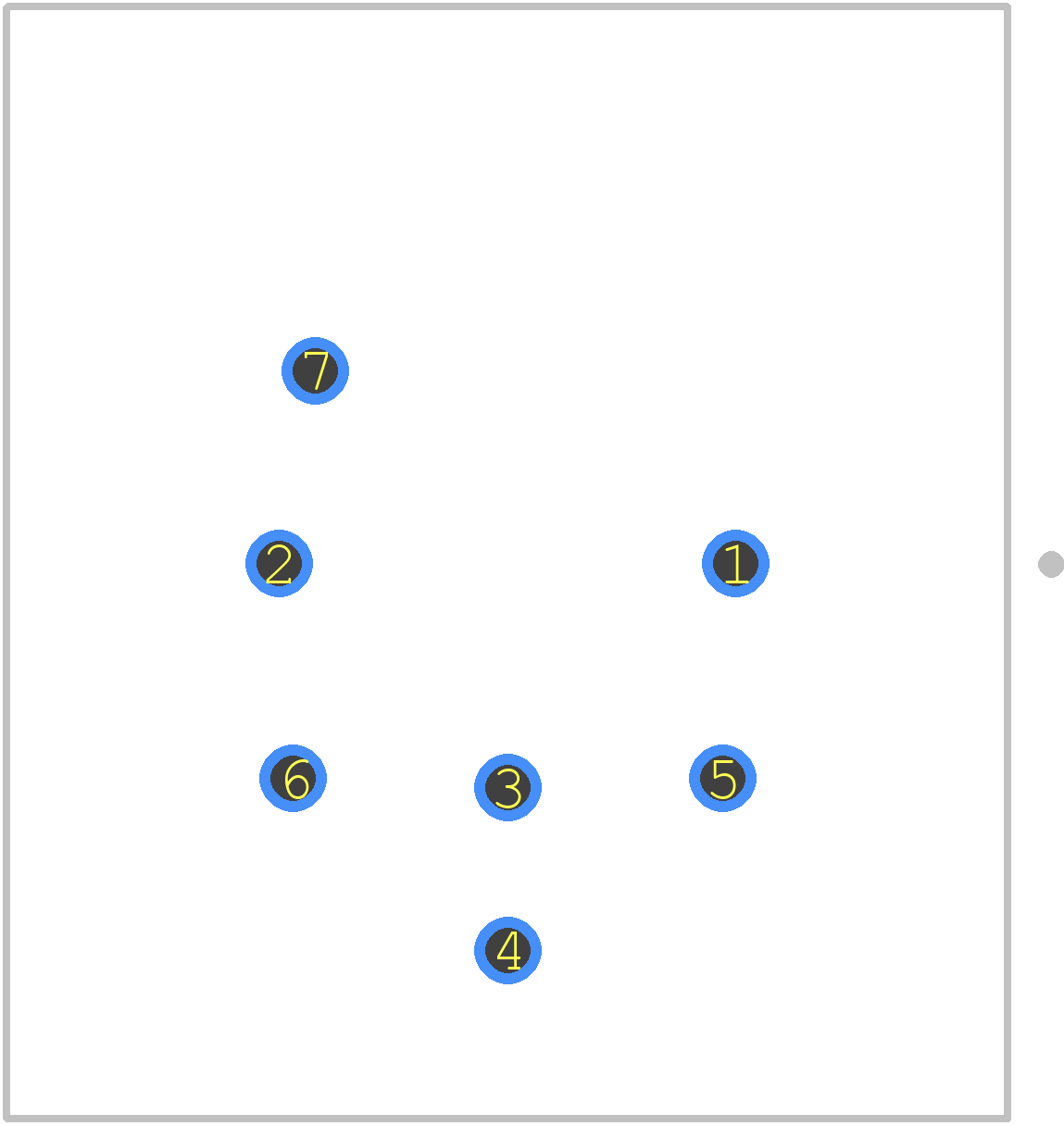

PCB Footprints
NCJ6FI-V - Neutrik PCB footprint - Other - Other - NCJ6FI-V
click to zoom

NCJ6FI-V Details

  • Manufacturer Part Number:

    NCJ6FI-V

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR AND 6.35 MM AUDIO

NCJ6FI-V Frequently Asked Questions (FAQs)

  • The recommended torque for the NCJ6FI-V connector is 0.6 Nm (5.3 in-lbs) for the screw locks and 1.5 Nm (13.4 in-lbs) for the hex nuts.
  • Yes, the NCJ6FI-V connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The NCJ6FI-V connector is rated for a maximum current of 20 A and a maximum voltage of 250 V, making it suitable for medium-power applications. For high-power applications, it's recommended to consult with Neutrik's technical support or consider using a higher-rated connector.
  • Yes, the NCJ6FI-V connector is part of Neutrik's XLR series and is compatible with other Neutrik XLR connectors, including the NC3FI-V and NC5FI-V models.
  • The operating temperature range for the NCJ6FI-V connector is -20°C to +70°C (-4°F to +158°F).
