Part Image

NCJ9FI-H - Neutrik

Description: XLR Audio Connector, Socket, 9, PCB Mount, Metal Body, Gold Plated Contacts RoHS Compliant: Yes

Download NCJ9FI-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ9FI-H - Neutrik - PCB symbol
click to zoom
PCB Footprints

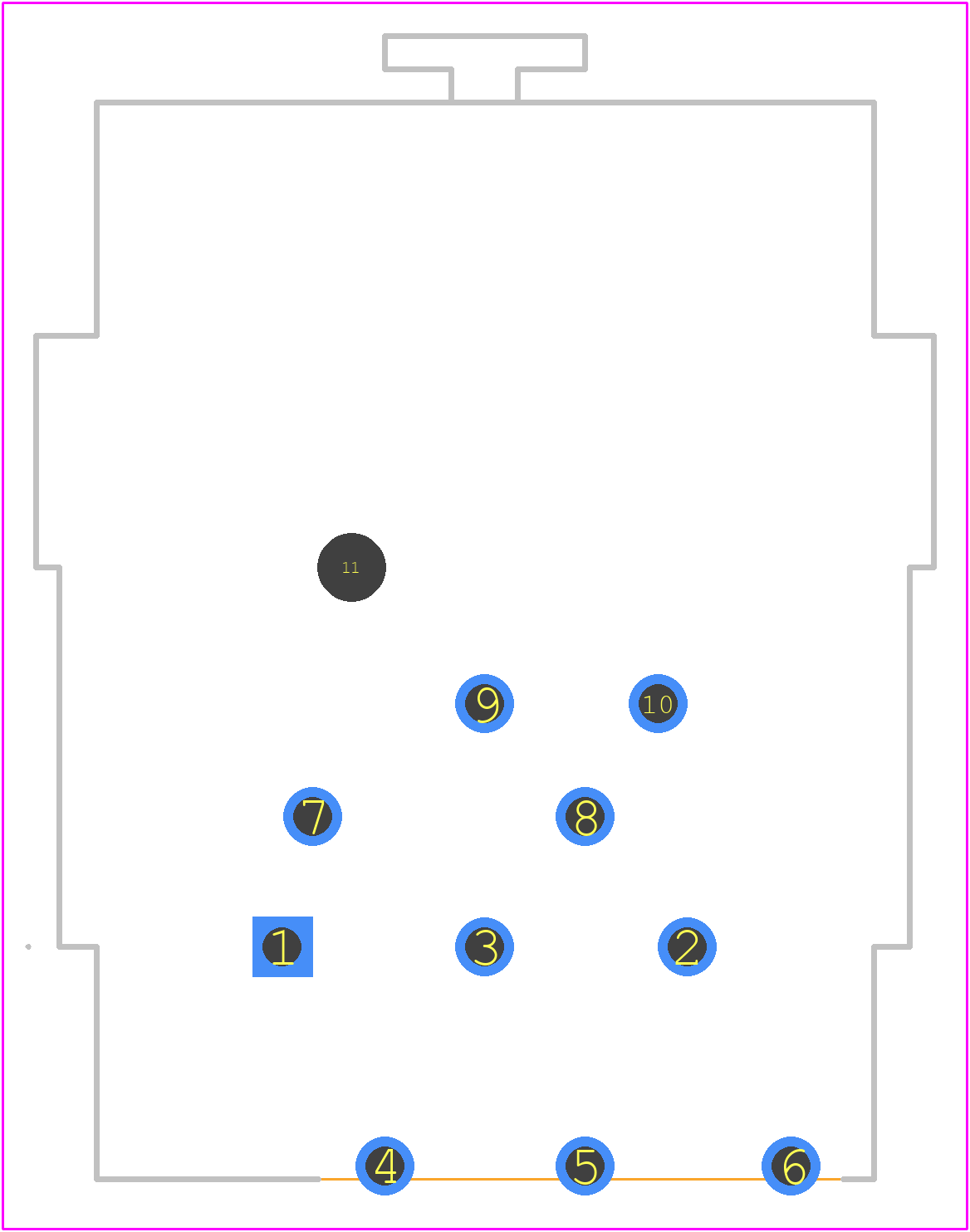

NCJ9FI-H - Neutrik PCB footprint - Other - Other - NCJ9FI-H-1
click to zoom

NCJ9FI-H Details

  • Manufacturer Part Number:

    NCJ9FI-H

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR AND 6.35 MM AUDIO

NCJ9FI-H Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the NCJ9FI-H is suitable for outdoor applications due to its IP67 rating, which provides protection against dust and water ingress.
  • The maximum cable diameter that can be used with the NCJ9FI-H is 10 mm (0.39 in).
  • Yes, the NCJ9FI-H is compatible with other Neutrik XLR connectors, including the NC3FI-H and NC3MX-H.
  • The operating temperature range for the NCJ9FI-H is -20°C to 75°C (-4°F to 167°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCJ9FI-H Overview

Use the download button to access the NCJ9FI-H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCJ9F, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
