NCJ9FI-V - Neutrik

Description: XLR Connectors XLR COMBO STEREO PCB Mount 3 Position 50 V,7.5 A

Download NCJ9FI-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NCJ9FI-V - Neutrik - PCB symbol
click to zoom
PCB Footprints

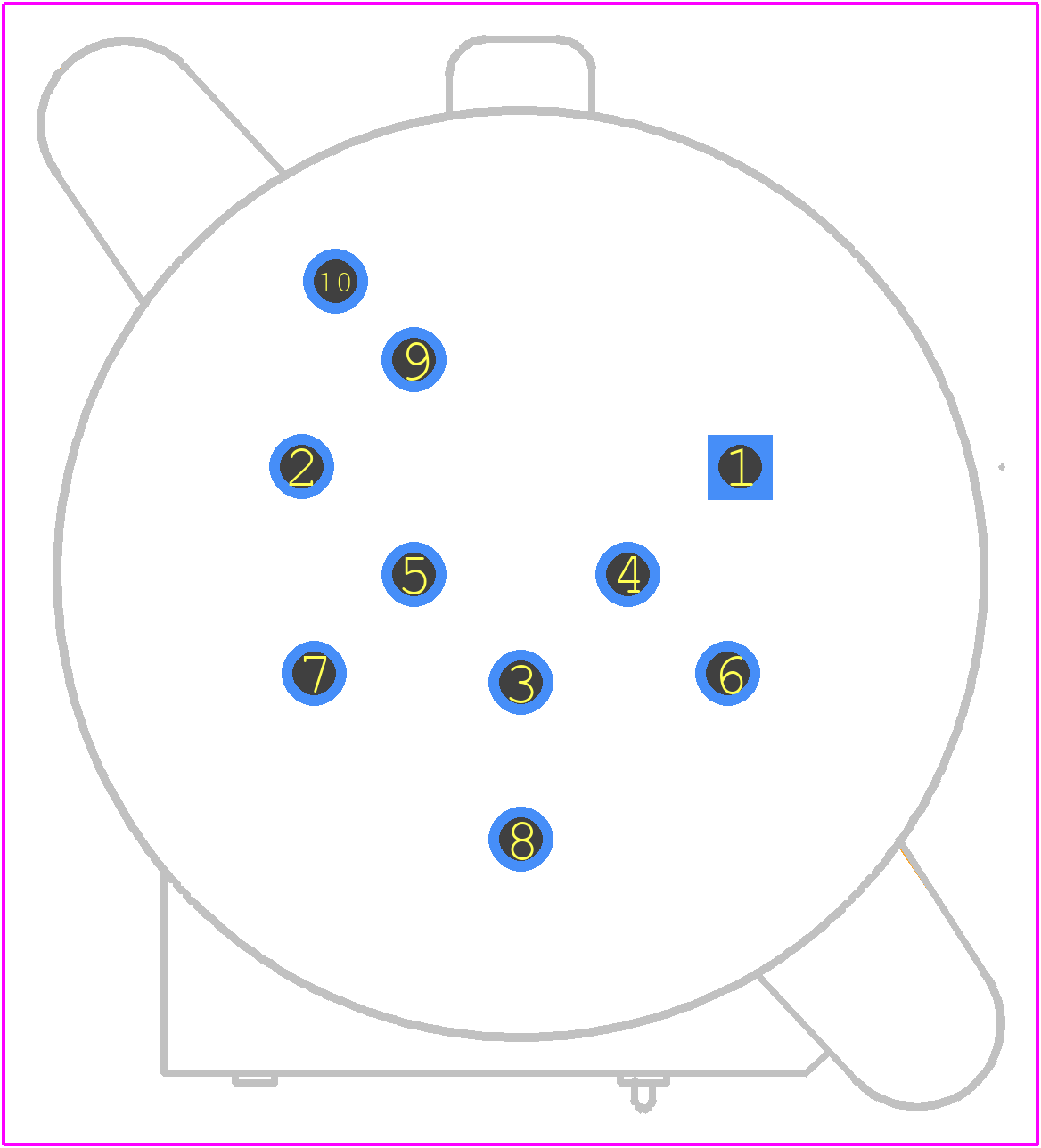

NCJ9FI-V - Neutrik PCB footprint - Other - Other - NCJ9FI-V-2
click to zoom

NCJ9FI-V Details

  • Manufacturer Part Number:

    NCJ9FI-V

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.80.00

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    CIRCULAR ADAPTER

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BRONZE

NCJ9FI-V Frequently Asked Questions (FAQs)

  • The recommended torque for the NCJ9FI-V connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw-type connectors, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the hex-type connectors.
  • Yes, the NCJ9FI-V connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress. However, it's essential to follow proper installation and sealing procedures to maintain the connector's environmental rating.
  • Yes, the NCJ9FI-V connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in demanding applications.
  • Yes, the NCJ9FI-V connector is part of Neutrik's XLR series and is compatible with other Neutrik XLR products, including receptacles, adapters, and cable assemblies.
  • The operating temperature range of the NCJ9FI-V connector is -30°C to +80°C (-22°F to +176°F), making it suitable for a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCJ9FI-V Overview

Use the download button to access the NCJ9FI-V schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCJ9F, or try a keyword search, such as Circular Adapters

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
