NCL30001DR2G - onsemi

Description: Adjustable Operating Frequency from 20-250 kHz; Frequency Jittering; Brown Out Detector; Internal 160 msec Fault Timer; High Accuracy Multiplier; Voltage Feedforward; Fixed Frequency Average Current Mode Control; Independent Latch-off input

Download NCL30001DR2G Model

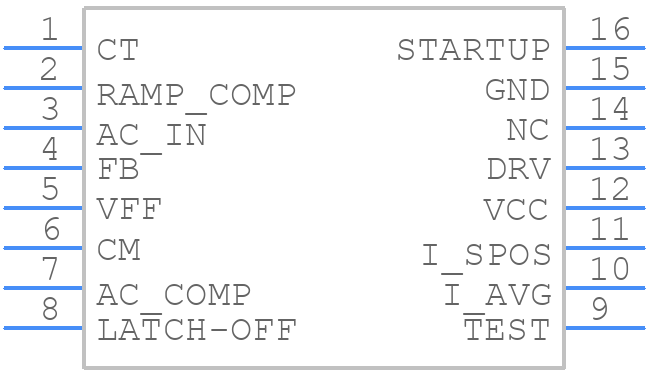

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCL30001DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - soic-16-ren1
click to zoom
3D Models
NCL30001DR2G - onsemi  - 3D model - Small Outline Packages - soic-16-ren1
click to zoom

NCL30001DR2G Details

  • Manufacturer Part Number:

    NCL30001DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
