NCL30170ADR2G - onsemi

Description: Accurate LED CC regulation: <±1%; Workable for Constant Power regulation; Selectable LED Channel counts; High PF & Low THD : >0.99 / <10%; Proprietary Active Phase-Cut Dimmer Control Technique; Wide Analog Dimming range: 5~100%; HV Startup Current Source; Protections - Input Over Voltage Protection - RCS Short Protection - Thermal Shutdown

Download NCL30170ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

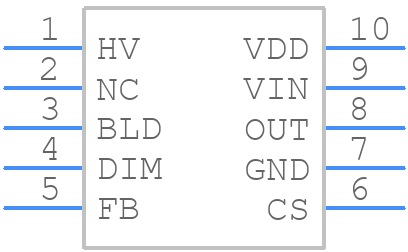

Symbol
NCL30170ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCL30170ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCL30170ADR2G
click to zoom
3D Models
NCL30170ADR2G - onsemi - 3D model - Small Outline Packages - NCL30170ADR2G
click to zoom

NCL30170ADR2G Details

  • Manufacturer Part Number:

    NCL30170ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-10

  • Manufacturer Package Code:

    751EE

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.25,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max:

    20.5 V

  • Supply Voltage-Min:

    19.5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.9 mm

NCL30170ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
  • The NCL30170ADR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
  • Yes, the NCL30170ADR2G is suitable for high-reliability and automotive applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • Follow the recommended soldering temperature profile and handling procedures to prevent damage. It's also essential to ensure proper cleaning and drying of the PCB to prevent moisture-related issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCL30170ADR2G Overview

Use the download button to access the NCL30170ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCL30, or try a keyword search, such as Display Drivers
