Description:Integrated 700 V HV Startup; Precise current regulation accuracy (<±2% typical); Precise voltage regulation accuracy (<±1% typical); PF(>0.95)/THD(<10%); Quasi-resonant control; Optional PSR/SSR mode; Optional Dimming curve: Linear/Quadratic; ADIM: Analog output current with DC signal, PWM output current with PWM signal; PDIM: Analog output current with PWM signal; Optional Min. Dim. Clamping(0/1/5/8%); Protections - BO/ Line OVP/ VCC OVP - LED Open/ short protection - Winding / Diode short protection - TSD
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermally conductive pad to dissipate heat.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified voltage, current, and temperature ranges to guarantee reliable operation.
To troubleshoot issues related to the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
To prevent electrostatic discharge (ESD) damage, handle the device in an ESD-protected environment, use ESD-protected tools and equipment, and ensure that your body is grounded before handling the device. Additionally, use antistatic packaging and follow proper handling procedures when storing and transporting the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCL30486A2DR2G Overview

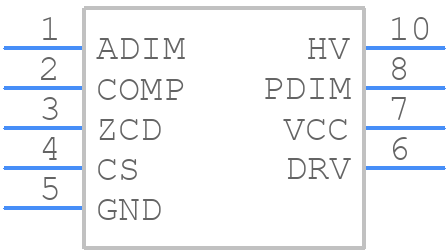

Use the download button to access the NCL30486A2DR2G schematic symbol, PCB footprint, and 3D model.
