NCM6S1203EC - Murata Electronics

Description: Murata Power Solutions 5W Isolated DC-DC Converter, Vin 9 → 36 V, Vout 3.3V, I/O isolation 5200V dc

Download NCM6S1203EC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

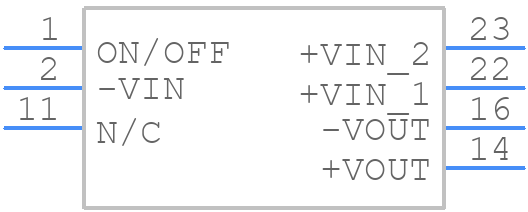

NCM6S1203EC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

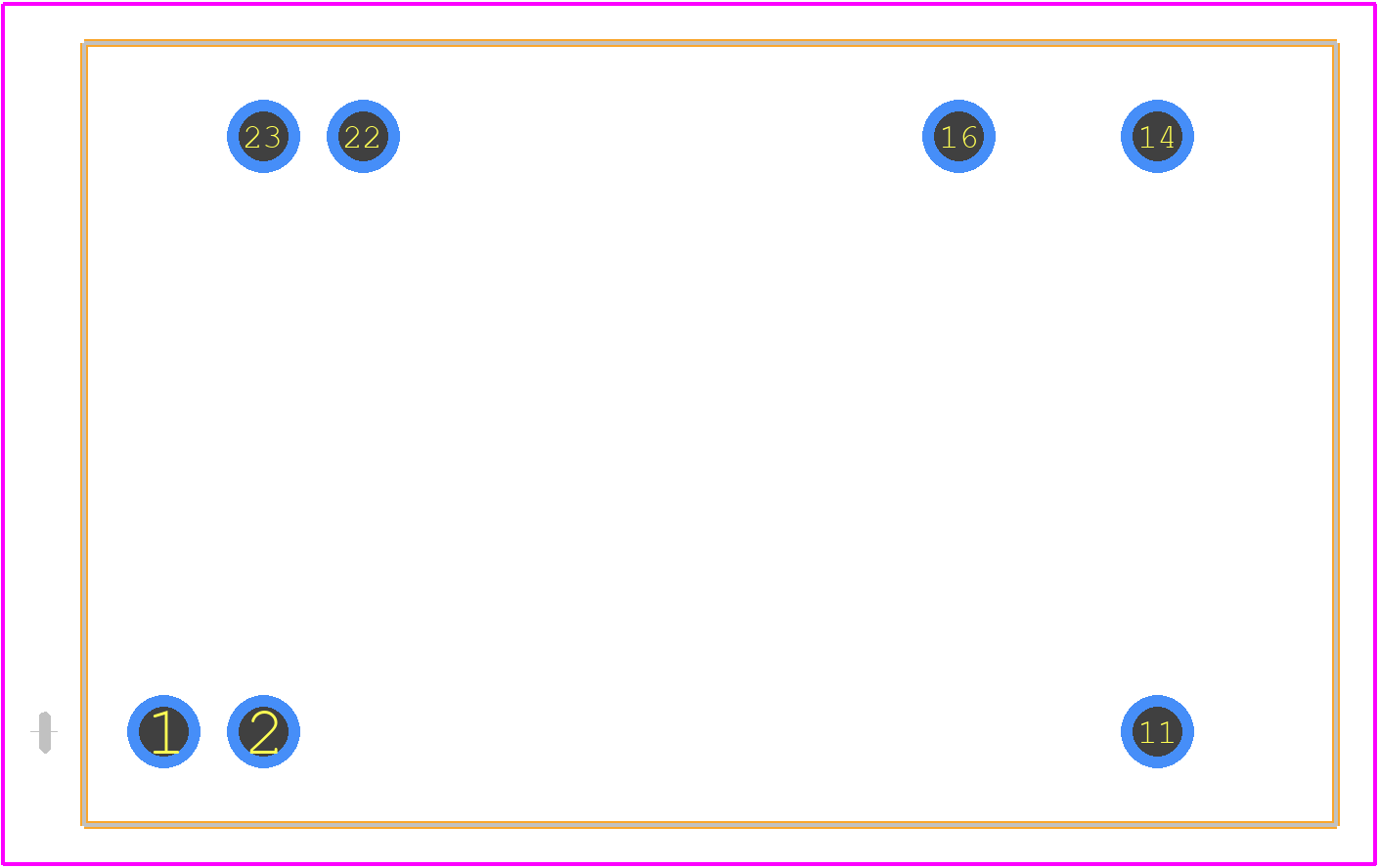

NCM6S1203EC - Murata Electronics PCB footprint - Other - Other - NCM6S1205C-1
click to zoom
3D Models
NCM6S1203EC - Murata Electronics - 3D model - Other - NCM6S1205C-1
click to zoom

NCM6S1203EC Details

  • Manufacturer Part Number:

    NCM6S1203EC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX;

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-P7

  • Length:

    32 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.75 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20 mm

NCM6S1203EC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NCM6S1203EC is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder resist opening of 2.2mm x 1.3mm.
  • The NCM6S1203EC has a thermal resistance of 30°C/W. To handle thermal considerations, ensure good airflow around the component, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and consider using a heat sink or thermal pad if the operating temperature exceeds 85°C.
  • The recommended soldering profile for the NCM6S1203EC is a peak temperature of 260°C, with a dwell time of 30-60 seconds above 220°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
  • To ensure the reliability of the NCM6S1203EC in high-vibration environments, use a robust mounting method such as a screw-down or adhesive mounting, and consider using a vibration-dampening material such as a silicone adhesive or a vibration-absorbing pad.
  • The ESR of the NCM6S1203EC is typically around 0.15 ohms, but this value can vary depending on the frequency and operating conditions. Consult the datasheet or contact Murata Manufacturing Co Ltd for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCM6S1203EC Overview

Use the download button to access the NCM6S1203EC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCM6S, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
