NCN1188MUTAG footprint, schematic symbol and 3D model by onsemi

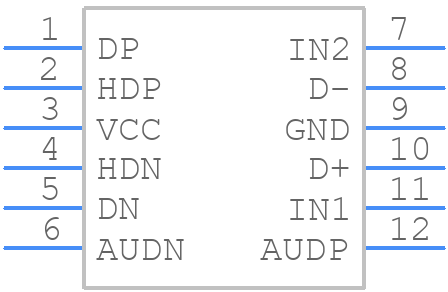

Symbol

click to zoom

PCB Footprints

NCN1188MUTAG - onsemi PCB footprint - Other - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE-01 ISSUE A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCN1188MUTAG
Part Number NCN1188MUTAG
Manufacturer onsemi
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - UQFN12 1.7x2.0, 0.4P CASE 523AE-01 ISSUE A
Released Date Nov 4, 2019
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NCN1188MUTAG Details

Manufacturer Part Number:
NCN1188MUTAG
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
UQFN12 2.0x1.7, 0.4P
Pin Count:
12
Manufacturer Package Code:
523AE
Country Of Origin:
Malaysia
HTS Code:
8542.39.00.60
Factory Lead Time:
9 Weeks
Manufacturer:
onsemi
YTEOL:
7
Analog IC - Other Type:
AUDIO/VIDEO SWITCH
JESD-30 Code:
R-XQCC-N12
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
12
Off-state Isolation-Nom:
53 dB
On-state Resistance Match-Nom:
0.09 Ω
On-state Resistance-Max (Ron):
7.5 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC12,.07X.08,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.55 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.7 mm
