Part Image

NCN5130MNTWG - onsemi

Description: KNX certified TP transceiver with embedded PHY and MAC layers (TP1-256) . 9600 Bauds communication speed.; Two high efficient DC-DC converters + one linear regulator : - DC-DC1 : fixed 3.3 V - DC-DC2 : adjustable between 1.2 and 21 V - 20V linear regulator; Bus Current Consumption up to 40 mA; Supervision of temperature, KNX bus voltage and current; Control and monitoring of power regulators; Buffering of sent data frames (extended frames upported); Selectable UART/SPI interface and baud rate to host contro

Download NCN5130MNTWG Model

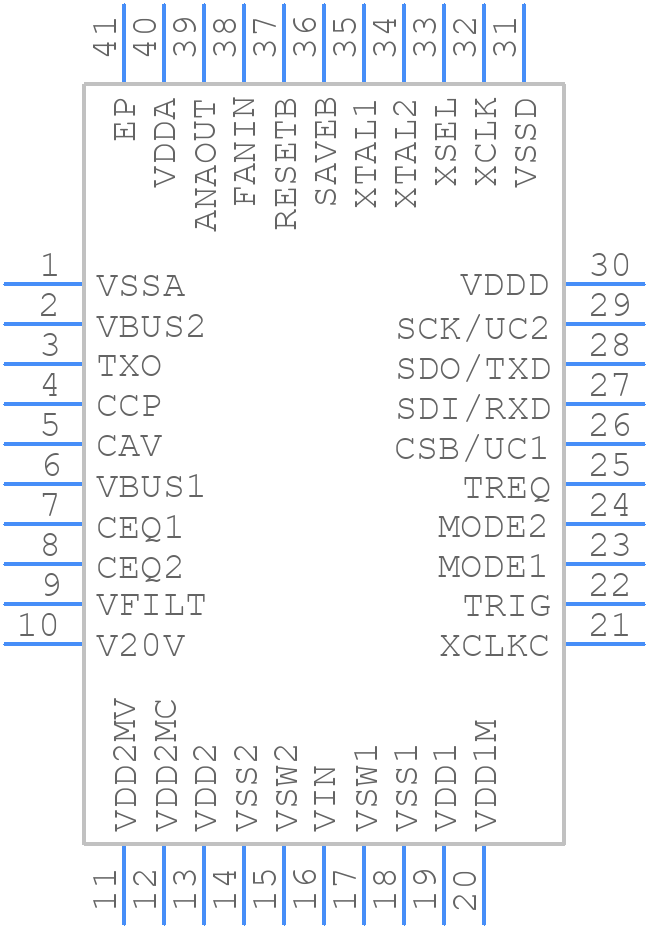

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCN5130MNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN−40 (Pb−Free)_
click to zoom
3D Models
NCN5130MNTWG - onsemi  - 3D model - Quad Flat No-Lead - QFN−40 (Pb−Free)_
click to zoom

NCN5130MNTWG Details

  • Manufacturer Part Number:

    NCN5130MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-40

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485AU

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    45 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.38

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCN5130MNTWG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense resistors.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure the ESR of the capacitor is less than 1 ohm. Also, add a 10nF capacitor in parallel with the output capacitor to improve transient response.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the regulator's performance and stability.
  • Yes, but with some limitations. The device is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Use an external current sense resistor (RSENSE) to monitor the output current. Add an external overcurrent protection circuit, such as a fuse or a current limiter, to prevent damage from excessive current.
