NCP1027P100G - onsemi

Description: Obsolete - High Voltage Switching Regulator for Offline SMPS

Download NCP1027P100G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

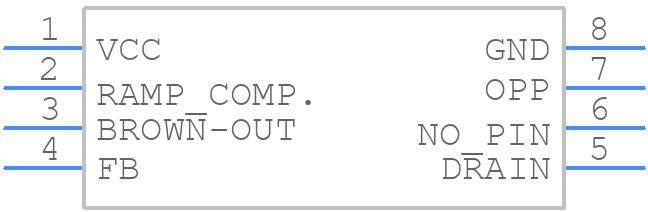

Symbol
NCP1027P100G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1027P100G - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
3D Models
NCP1027P100G - onsemi - 3D model - Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for NCP1027P100G
  • Part Number NCP1027P100G
  • Manufacturer onsemi
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Dual-In-Line Packages
  • Footprint Name Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
  • Released Date Jul 11, 2021
  • Last Modified Date Sep 19, 2024 2:45 PM UTC
  • Pinout / Pin List Click Here (Member Only)

NCP1027P100G Details

  • Manufacturer Part Number:

    NCP1027P100G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-7 (PDIP-8 LESS PIN 6)

  • Package Description:

    DIP-8

  • Pin Count:

    7

  • Manufacturer Package Code:

    626A-01

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Nom:

    8 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max (Isup):

    15 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    110 kHz

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NCP1027P100G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable start-up, make sure the input voltage is within the recommended range, and the output capacitor is properly sized to handle the inrush current. Also, ensure that the input voltage rises monotonically to avoid false triggering of the under-voltage lockout (UVLO) circuit.
  • The maximum allowed capacitance on the output of the converter is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • A recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. This helps to filter out input voltage noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1027P100G Overview

Use the download button to access the NCP1027P100G schematic symbol, PCB footprint, and 3D model.
