The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable start-up, make sure the input voltage is within the specified range, the input capacitor is properly sized, and the output capacitor is properly selected to meet the required output voltage ripple. Also, ensure that the feedback network is properly designed and the compensation components are correctly selected.
The maximum allowed input voltage ripple for the NCP102SNT1G is 10% of the nominal input voltage. Exceeding this limit may affect the converter's performance and reliability.
While it's possible to use a different inductor value, it's not recommended. The recommended inductor value is carefully selected to ensure optimal performance and stability of the converter. Using a different value may affect the converter's efficiency, stability, and output voltage ripple.
To troubleshoot issues with the converter's output voltage regulation, check the feedback network, compensation components, and output capacitor selection. Ensure that the output voltage sense pin is properly connected and the feedback resistors are correctly selected. Also, verify that the input voltage is within the specified range and the converter is not operating in a fault condition.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP102SNT1G Overview

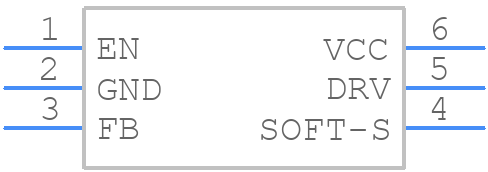

Use the download button to access the NCP102SNT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
