NCP1051P100G - onsemi

NCP1051P100G Details

• Manufacturer Part Number:

  NCP1051P100G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

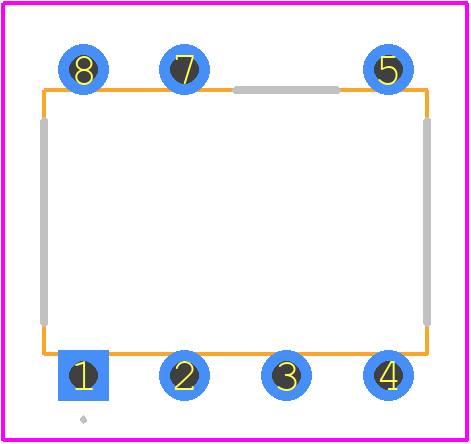

  PDIP-7 (PDIP-8 LESS PIN 6)

• Package Description:

  DIP-8

• Pin Count:

  7

• Manufacturer Package Code:

  626A-01

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  8.5 V

• Input Voltage-Min:

  7.5 V

• Input Voltage-Nom:

  8 V

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.78 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Surface Mount:

  NO

• Switcher Configuration:

  SINGLE

• Switching Frequency-Max:

  113 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
