NCP1071STAT3G - onsemi

Description: Obsolete - High-Voltage Switcher for Low Power Offline SMPS

Download NCP1071STAT3G Model
Schematic

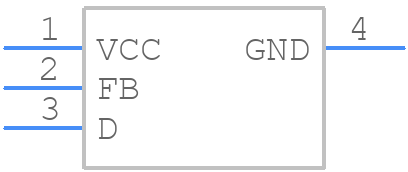

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

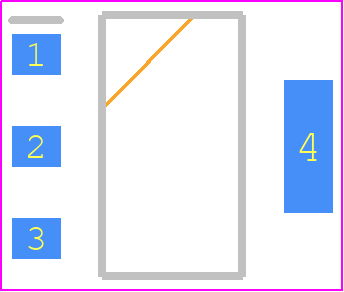

NCP1071STAT3G - onsemi PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE N
click to zoom
3D Models
NCP1071STAT3G - onsemi  - 3D model - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE N
click to zoom

NCP1071STAT3G Details

  • Manufacturer Part Number:

    NCP1071STAT3G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-223-4 / TO-261-4D

  • Package Description:

    SOT-223, 4 PIN

  • Manufacturer Package Code:

    0.0318

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    8.6 V

  • Input Voltage-Min:

    7.8 V

  • Input Voltage-Nom:

    8.2 V

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TO-261AA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    71 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.3 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm
