Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the copper traces wide and short to reduce thermal resistance.
To ensure reliable startup and shutdown, make sure to follow the recommended soft-start and shutdown procedures, and use a suitable input capacitor to filter out noise and voltage transients.
When selecting the output inductor and capacitor, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. Choose components with suitable ratings and characteristics to ensure stable operation and minimize losses.
To troubleshoot common issues, check the input voltage, output load, and PCB layout for any anomalies. Use an oscilloscope to monitor the output voltage and current, and check for signs of overheating, such as excessive temperature rise or thermal shutdown.
Operating the converter at high ambient temperatures can reduce its reliability and lifespan. Ensure that the device is properly cooled, and consider derating the output power or using a heat sink to mitigate the effects of high temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1076AAP065G Overview

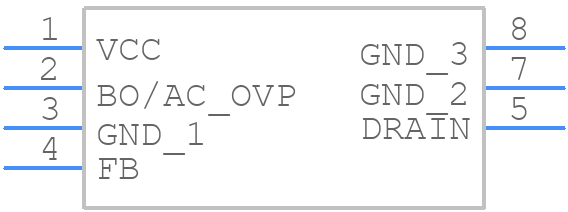

Use the download button to access the NCP1076AAP065G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
