Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for the NCP1076ABP100G should prioritize thermal management, with a solid ground plane and thermal vias to dissipate heat. The input and output capacitors should be placed close to the IC, and the feedback network should be routed to minimize noise and parasitic inductance.
To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR, and the feedback network is properly compensated. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The NCP1076ABP100G is rated for operation up to 150°C ambient temperature, but it's recommended to derate the output power and current to ensure reliable operation at high temperatures. Consult the datasheet for thermal derating curves and guidelines.
Yes, the NCP1076ABP100G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive-grade ICs, and onsemi provides additional documentation and support for these applications. However, ensure that you follow the recommended design and testing guidelines to meet the specific requirements of your application.
To troubleshoot issues with the NCP1076ABP100G, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and thermal management. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillations or instability. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1076ABP100G Overview

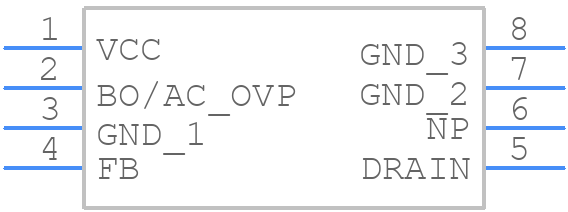

Use the download button to access the NCP1076ABP100G schematic symbol, PCB footprint, and 3D model.
