Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for the NCP1076BBP100G should prioritize thermal management, minimize noise coupling, and ensure good power supply decoupling. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Place the input and output capacitors close to the device, and use short, wide traces for the power lines.
To ensure the NCP1076BBP100G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range of 10V to 18V, and the output current is within the recommended range of 0A to 10A.
The recommended input capacitor value for the NCP1076BBP100G is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
To troubleshoot issues with the NCP1076BBP100G, start by checking the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as a high junction temperature or excessive thermal resistance. Also, ensure that the input and output capacitors are properly selected and placed.
Yes, the NCP1076BBP100G is suitable for high-reliability and automotive applications due to its high-quality manufacturing process and robust design. However, it is essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure the device operates within its SOA. Additionally, onsemi provides a range of automotive-grade and high-reliability versions of the NCP1076BBP100G, such as the NCP1076BBP100GQ or NCP1076BBP100GV, which are specifically designed for these applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1076BBP100G Overview

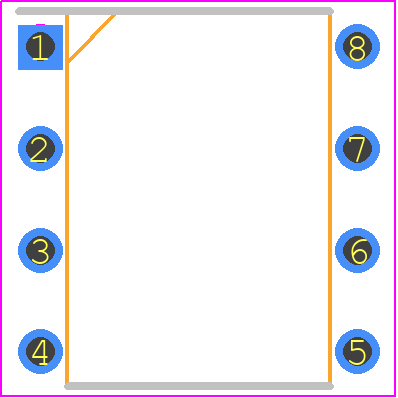

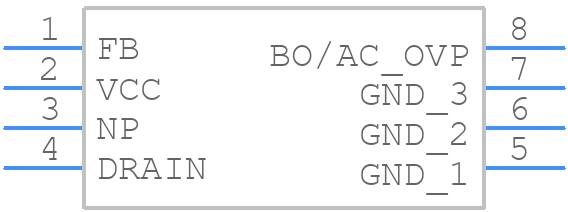

Use the download button to access the NCP1076BBP100G schematic symbol, PCB footprint, and 3D model.
