Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for the NCP1077ABP065G should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern around the device to facilitate heat dissipation. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design for specific applications.
To ensure proper biasing, follow the recommended operating conditions in the datasheet, including the input voltage range, output voltage range, and output current. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device to minimize parasitic inductance and resistance.
Operating the NCP1077ABP065G beyond the recommended operating conditions can lead to reduced performance, decreased efficiency, and potentially even damage to the device. It's essential to consult with onsemi's application engineers or refer to the datasheet for guidance on operating the device under extreme conditions.
To troubleshoot issues with the NCP1077ABP065G, start by verifying the input voltage, output voltage, and output current are within the recommended operating conditions. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes and thermal imaging tools to identify potential issues, and consult with onsemi's application engineers or refer to the datasheet for guidance on troubleshooting specific problems.
Yes, the NCP1077ABP065G is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, follow proper PCB layout and shielding techniques, use EMI filters, and ensure that the device is properly decoupled from the input and output lines. Consult with onsemi's application engineers or refer to the datasheet for guidance on EMI/EMC considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1077ABP065G Overview

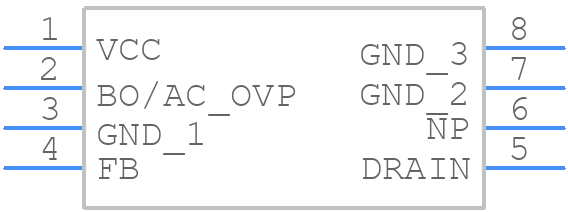

Use the download button to access the NCP1077ABP065G schematic symbol, PCB footprint, and 3D model.
