Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for optimal thermal performance involves placing the NCP1077ABP100G near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable startup and shutdown of the converter, it's essential to follow the recommended startup and shutdown sequences outlined in the datasheet. This includes slowly ramping up the input voltage, ensuring the output voltage is within the specified range, and providing a soft-start mechanism to prevent inrush currents.
The critical components that affect the converter's efficiency include the input and output capacitors, the inductor, and the switching FETs. Choosing components with low ESR, high Q, and low RDS(on) can significantly improve the converter's efficiency. Additionally, optimizing the PCB layout and reducing parasitic resistances and inductances can also help improve efficiency.
To troubleshoot issues with the converter's output voltage regulation, start by checking the input voltage, output voltage, and output current. Verify that the output voltage is within the specified range and that the output current is not exceeding the maximum rating. Check for any signs of overheating, and ensure that the converter is properly configured and compensated. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The recommended test and measurement equipment for characterizing the converter's performance include a high-accuracy DC power supply, a digital multimeter, an oscilloscope, and a current probe. Additionally, a thermal imaging camera or a thermocouple can be used to measure the converter's temperature and thermal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1077ABP100G Overview

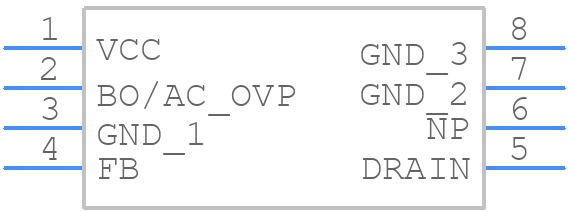

Use the download button to access the NCP1077ABP100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
