A good PCB layout for the NCP1080DEG should include a solid ground plane, a small thermal loop area, and a heat sink attached to the exposed pad. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure optimal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. The datasheet provides more detailed guidance on input capacitor selection.
The maximum ambient temperature for the NCP1080DEG is 85°C, but it's essential to consider the junction temperature (Tj) as well. The maximum Tj is 150°C, and the device should be derated above 70°C to ensure reliable operation.
Yes, the NCP1080DEG is suitable for high-reliability applications. It's built with a robust design, and onsemi provides a comprehensive set of reliability data, including MTBF and FIT rates. However, it's essential to follow proper design and manufacturing practices to ensure the device meets the required reliability standards.
Troubleshooting issues with the NCP1080DEG typically involves checking the input voltage, output voltage, and output current. It's also essential to verify the PCB layout, component selection, and thermal design. onsemi provides a troubleshooting guide in the datasheet, and additional support resources are available on their website.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1080DEG Overview

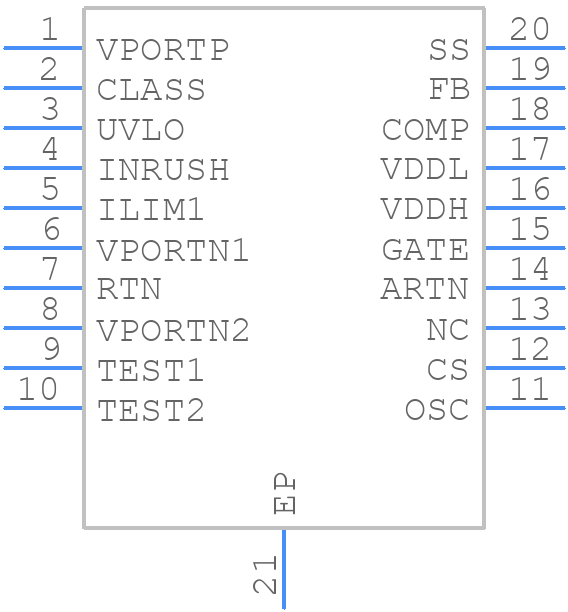

Use the download button to access the NCP1080DEG schematic symbol, PCB footprint, and 3D model.
