A good PCB layout for the NCP1200D60R2G should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the onsemi application note AND8327/D for more details.
To ensure reliable start-up, ensure that the input voltage is within the specified range, and the input capacitor is properly sized. Also, make sure the soft-start capacitor is correctly sized and the UVLO threshold is set correctly. Refer to the datasheet for more information.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple.
To optimize the output filter, use a combination of capacitors with different values and types (e.g., ceramic, electrolytic, and film capacitors). The output filter should be designed to provide a high impedance at the switching frequency and its harmonics. Refer to the datasheet and application notes for more information.
The maximum allowed junction temperature for the NCP1200D60R2G is 150°C. It is essential to ensure that the device operates within the specified temperature range to ensure reliability and prevent thermal shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1200D60R2G Overview

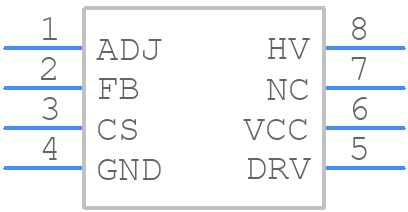

Use the download button to access the NCP1200D60R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP12,
or try a keyword search, such as Switching Regulator or Controllers
