A good PCB layout for the NCP1200P100G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the NCP1200P100G operates within its SOA, monitor the input voltage, output current, and junction temperature. Keep the input voltage within the recommended range, limit the output current to the maximum rated value, and ensure good thermal management to keep the junction temperature below 150°C.
A low-ESR ceramic capacitor with a value of 10-22 μF is recommended for the input capacitor. The capacitor should be placed close to the IC and have a voltage rating of at least 50 V.
The output voltage ripple of the NCP1200P100G can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
A good thermal management strategy for the NCP1200P100G involves using a heat sink with a thermal resistance of less than 10°C/W, applying a thermal interface material (TIM) with a thermal conductivity of at least 5 W/m-K, and ensuring good airflow around the heat sink.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1200P100G Overview

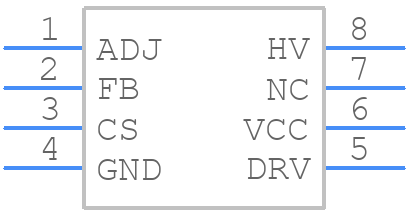

Use the download button to access the NCP1200P100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP12,
or try a keyword search, such as Switching Regulator or Controllers
