The maximum operating temperature range for the NCP1200P60 is -40°C to 150°C.
To ensure proper biasing, connect a 10 kΩ resistor between the VCC pin and the VIN pin, and a 1 μF capacitor between the VCC pin and GND.
The recommended input capacitor value is 10 μF to 22 μF, with an X7R or X5R dielectric, and a voltage rating of 50 V or higher.
The output voltage can be calculated using the formula: VOUT = (R1 / R2) × (VIN - VREF), where R1 and R2 are the feedback resistors, VIN is the input voltage, and VREF is the internal reference voltage (2.5 V).
The EN (Enable) pin is used to enable or disable the regulator. When EN is high, the regulator is enabled, and when EN is low, the regulator is disabled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1200P60 Overview

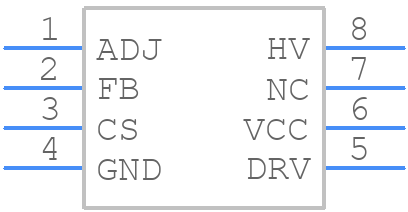

Use the download button to access the NCP1200P60 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP12,
or try a keyword search, such as Switching Regulator or Controllers
