Description:No auxiliary winding operation; Current-mode control with adjustable skip-cycle capability; Internal ramp compensation ; Built-in frequency jittering for better EMI signature; Auto-recovery internal output short circuit protection; Extremely low no-load standby power; 500mA peak current capability; Fixed frequency versions at 65 kHz, 100 kHz, 133 kHz; Internal temperature shutdown ; Direct optocoupler connection; SPICE models available for TRANsient and AC analysis; Pin-to-pin compatible with NCP1200 series
A good PCB layout for the NCP1216D65R2G should include a solid ground plane, wide power traces, and a thermal relief pattern around the device. A minimum of 2oz copper thickness is recommended. Additionally, placing the device near a thermal pad or heat sink can improve thermal performance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start capacitor, a voltage supervisor, and a power-good signal to monitor the output voltage.
The critical components that affect the converter's efficiency include the inductor, output capacitors, and MOSFETs. Choosing components with low ESR, high Q, and low RDS(on) can significantly improve the converter's efficiency.
To troubleshoot oscillations or instability, check the PCB layout, component selection, and the compensation network. Ensure that the layout is well-decoupled, and the components are selected according to the datasheet recommendations. Also, verify that the compensation network is properly designed and implemented.
To ensure EMI compliance, it's essential to follow the recommended EMI filtering guidelines outlined in the datasheet. This includes using a common-mode choke, X-capacitors, and Y-capacitors to filter out conducted emissions. Additionally, ensure that the PCB layout is well-shielded, and the device is placed in a metal enclosure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1216D65R2G Overview

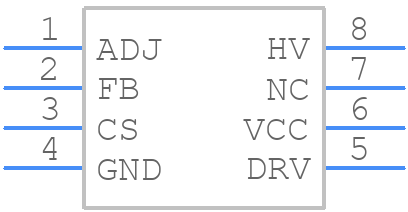

Use the download button to access the NCP1216D65R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP12,
or try a keyword search, such as Switching Regulator or Controllers
