NCP1230D100R2G - onsemi

Description: Current−Mode Operation with Internal Ramp Compensation; Internal High−Voltage Start−Up Current Source for Loss Less Start−Up; Extremely Low No−Load Standby Power; Skip−Cycle Capability at Low Peak Currents; Direct Connection to PFC Controller for Improved No−Load Standby Power; Internal 2.5 ms Soft Start; Internal Leading Edge Blanking; Latched Primary Overcurrent and Overvoltage Protection; Short−Circuit Protection Independent of Auxiliary Level; Internal Frequency Jittering for Improved EMI Signature; +50

Download NCP1230D100R2G Model

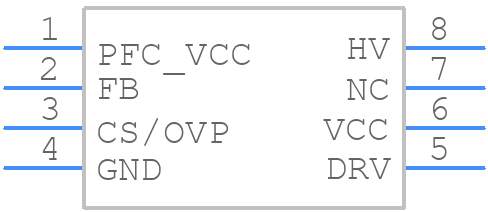

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1230D100R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 D SUFFIX CASE 751−07 ISSUE AK
click to zoom
3D Models
NCP1230D100R2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 D SUFFIX CASE 751−07 ISSUE AK
click to zoom

NCP1230D100R2G Details

  • Manufacturer Part Number:

    NCP1230D100R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    PULSE FREQUENCY MODULATION TECHNIQUE IS ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION
