A good PCB layout for the NCP1250BP65G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the NCP1250BP65G operates within its SOA, monitor the input voltage, output voltage, and current during startup and fault conditions. Implement overvoltage protection (OVP), undervoltage protection (UVP), and overcurrent protection (OCP) to prevent damage to the IC.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize voltage ripple and ensure stable operation.
Optimize the compensation network by selecting the correct values for the compensation resistors and capacitors. Use the datasheet's recommended values as a starting point and adjust them based on the specific application requirements and PCB layout.
The NCP1250BP65G has an operating ambient temperature range of -40°C to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1250BP65G Overview

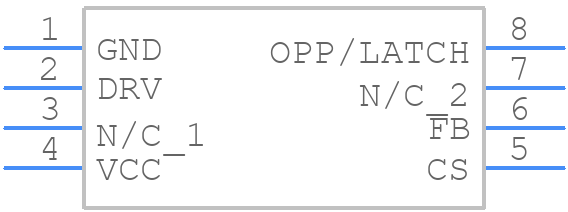

Use the download button to access the NCP1250BP65G schematic symbol and PCB footprint.
