Description:Peak current mode control; Adjustable switching frequency; Latched primary overcurrent protection with 10 ms fixed delay; Adjustable soft start timer; Auto recovery brown out detection; Extended Vcc range up to 28 V with auto recovery UVLO; Internal 160 ns leading edge blanking; Frequency jittering; Adjustable internal ramp compensation ; +500 mA / -800 mA Source/Sink current driver capability; Skip cycle operation in light/no load operation; SOIC-8 package
A good PCB layout for the NCP1252EDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the feedback resistors are of high precision and the layout is well-designed to minimize noise and parasitic inductance.
The NCP1252EDR2G can operate in an ambient temperature range of -40°C to 125°C. However, the maximum junction temperature should not exceed 150°C.
Yes, the NCP1252EDR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the NCP1252EDR2G, start by checking the input and output voltages, ensuring they are within the specified range. Then, verify the feedback resistors and capacitors are correctly connected and of the correct values. Finally, check the PCB layout for any noise or parasitic inductance issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1252EDR2G Overview

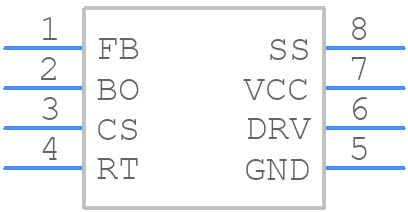

Use the download button to access the NCP1252EDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP12,
or try a keyword search, such as Switching Regulator or Controllers
