Part Image

NCP12700ADNR2G - onsemi

Description: Wide Input Range (9 – 120/200 V; MSOP10/WQFN10); 1 A / 2.8 A Source / Sink Gate Driver; Current Mode Control with Integrated Slope Compensation; Single Resistor Programmable Oscillator; Input Voltage UVLO with Hysteresis; Several Fault Protections: - User Adjustable Over-Power Protection - Overload Protection with 30 ms Overload Timer - NTC-Compatible Fault Interface for Thermal Protection - Output OVP Fault Interface - Fault Auto-recovery Mode with 1 s Auto-recovery Period

Download NCP12700ADNR2G Model

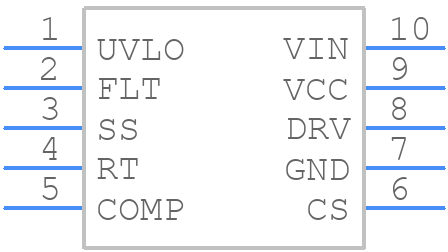

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP12700ADNR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCP12700ADNR2G
click to zoom
3D Models
NCP12700ADNR2G - onsemi  - 3D model - Small Outline Packages - NCP12700ADNR2G
click to zoom

NCP12700ADNR2G Details

  • Manufacturer Part Number:

    NCP12700ADNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP-10

  • Package Description:

    MSOP-10

  • Manufacturer Package Code:

    846AE

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP12700ADNR2G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the NCP12700ADNR2G involves placing the device near a thermal pad or heat sink, using a 2-layer or 4-layer board with a solid ground plane, and keeping the thermal vias as close to the device as possible.
  • To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor (e.g., 10 kΩ) and a capacitor (e.g., 100 nF) in parallel. This ensures the device is enabled and biased correctly.
  • The maximum allowed voltage on the VIN pin is 28 V, but it's recommended to keep it below 24 V for optimal performance and reliability.
  • The output voltage (VOUT) can be calculated using the formula: VOUT = (R1 / R2) × (VIN - VREF), where R1 and R2 are the feedback resistors, VIN is the input voltage, and VREF is the internal reference voltage (typically 1.25 V).
  • The PG (Power Good) pin is an open-drain output that indicates when the output voltage is within regulation (i.e., ±10% of the nominal output voltage). It can be used to enable or disable downstream circuits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP12700ADNR2G Overview

Use the download button to access the NCP12700ADNR2G schematic symbol, PCB footprint, and 3D model.
