NCP1271D65R2G - onsemi

Description: Short Circuit Protection Independent of the Auxiliary Winding; Adjustable Soft Skip Mode; Internal High-Voltage Start-up; 5% Current Limit Accuracy over the Full Temperature Range; Internal Latch for Easy Implementation of Overvoltage and Overtemperature Protection; Frequency Jittering for Softened EMI Signature; +500 mA/800 mA Peak Current Drive Capability

Download NCP1271D65R2G Model

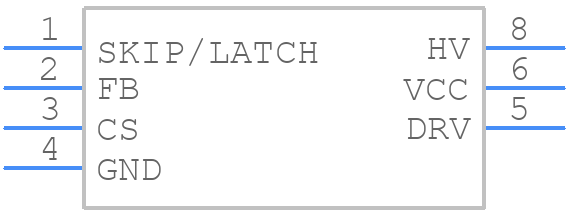

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1271D65R2G - onsemi PCB footprint - Other - Other - SOIC−7 CASE 751U ISSUE E_2024
click to zoom
3D Models
NCP1271D65R2G - onsemi  - 3D model - Other - SOIC−7 CASE 751U ISSUE E_2024
click to zoom

NCP1271D65R2G Details

  • Manufacturer Part Number:

    NCP1271D65R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC 7 CASE OUTLINE

  • Package Description:

    SOIC-7

  • Pin Count:

    7

  • Manufacturer Package Code:

    751U

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP7/8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    107 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1271D65R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP1271D65R2G is -40°C to 150°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage (VIN) is within the recommended range of 4.5V to 18V.
  • For optimal performance, place the NCP1271D65R2G close to the input capacitors and ensure a solid ground plane underneath the device. Keep the input and output traces short and separate to minimize noise and EMI.
  • The output voltage (VOUT) of the NCP1271D65R2G can be calculated using the formula: VOUT = (VIN x (R1 / (R1 + R2))), where R1 and R2 are the feedback resistors.
  • The maximum output current capability of the NCP1271D65R2G is 1.5A, but it can be limited by the input voltage, output voltage, and thermal considerations.
