Part Image

NCP1294EDBR2G - onsemi

Description: 1MHz Frequency Capability; 1A Sink/Source Gate Drive; Programmable Pulse-by-Pulse Overcurrent Protection; Programmable Soft Start

Download NCP1294EDBR2G Model

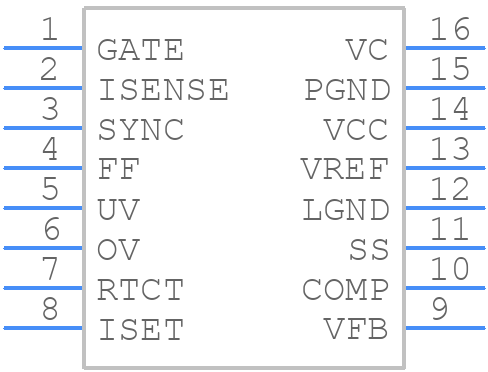

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1294EDBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom
3D Models
NCP1294EDBR2G - onsemi  - 3D model - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom

NCP1294EDBR2G Details

  • Manufacturer Part Number:

    NCP1294EDBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.7 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    14 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NCP1294EDBR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the PCB is designed to minimize thermal resistance.
  • To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the recommended operating range. Also, ensure that the output capacitor is properly sized and that the output voltage is within the recommended operating range.
  • When selecting the output capacitor, consider the output voltage, output current, and ripple requirements. A low-ESR capacitor with a high ripple current rating is recommended. The output capacitor should be sized to ensure that the output voltage remains within the recommended operating range during start-up, shutdown, and transient conditions.
  • To minimize EMI, ensure that the PCB is designed with good electromagnetic compatibility (EMC) in mind. Use a multi-layer PCB with a solid ground plane, and ensure that the device is placed away from noise-sensitive components. Use shielding and filtering as needed, and ensure that the input and output cables are properly routed and terminated.
  • The NCP1294EDBR2G has a maximum junction temperature of 150°C. Ensure that the device is operated within the recommended temperature range, and that the PCB is designed to minimize thermal resistance. Use a heat sink or thermal pad as needed, and ensure that the device is properly mounted and soldered.
