NCP133AMX105TCG - onsemi

Description: Ultra-Low Dropout of Typ. 140mV; Fixed Output Voltage options from 0.8V to 2.1V and Adjustable ; 140 mV typical dropout at the full 500 mA load.; Guaranteed Output Current from 0mA to 500mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 500mA; Output Active Discharge option available

Download NCP133AMX105TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

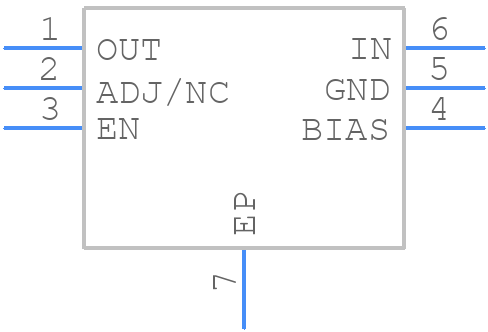

NCP133AMX105TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP133AMX105TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - XDFN6 1.20x1.20, 0.40P
click to zoom
3D Models
NCP133AMX105TCG - onsemi - 3D model - Small Outline No-lead - XDFN6 1.20x1.20, 0.40P
click to zoom

NCP133AMX105TCG Details

  • Manufacturer Part Number:

    NCP133AMX105TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-6

  • Manufacturer Package Code:

    711AT

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.25 V

  • Dropout Voltage1-Nom:

    0.14 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.0658 V

  • Output Voltage1-Min:

    1.0343 V

  • Output Voltage1-Nom:

    1.05 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.05,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.45 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    1.2 mm

NCP133AMX105TCG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the NCP133AMX105TCG is to keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the device operates within the safe operating area (SOA), monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and noise.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The recommended output capacitor type is a low-ESR ceramic capacitor with a value of 22uF to 47uF. The capacitor should be rated for the maximum output voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP133AMX105TCG Overview

Use the download button to access the NCP133AMX105TCG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13, or try a keyword search, such as Linear Regulator ICs
