NCP1340B3D1R2G - onsemi

Description: QR Frequency Jittering; New Quiet-Skip Technology; Integrated HV Startup with Brownout Protection; Valley Switching Operation with Valley Lockout; Integrated X2 Capacitor Discharge Capability; NTC Compatible Fault Pin; High Drive Capability: -500 mA / +800 mA; Latch input for OVP and OTP implementations

Download NCP1340B3D1R2G Model

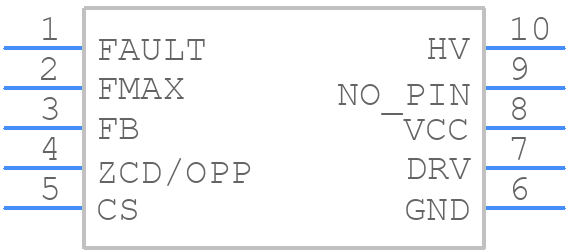

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1340B3D1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−9 NB CASE 751BP ISSUE A
click to zoom
3D Models
NCP1340B3D1R2G - onsemi  - 3D model - Small Outline Packages - SOIC−9 NB CASE 751BP ISSUE A
click to zoom

NCP1340B3D1R2G Details

  • Manufacturer Part Number:

    NCP1340B3D1R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-9 NB

  • Package Description:

    SOIC-9

  • Manufacturer Package Code:

    751BP

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.4

  • Additional Feature:

    ASLO HAS CONTROL TECHNIQUE OF RESONANT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDSO-G9

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP9/10,.24,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    25 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1340B3D1R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1340B3D1R2G should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad. The layout should also minimize thermal resistance and ensure good airflow.
  • To ensure reliable start-up and shutdown, make sure to follow the recommended soft-start circuitry and timing, and ensure that the input voltage is stable and within the recommended range. Also, ensure that the output voltage is properly decoupled and filtered.
  • When selecting the output inductor and capacitors, consider the inductor's saturation current, core loss, and DC resistance. For capacitors, consider the voltage rating, capacitance, and equivalent series resistance (ESR). Ensure that the components are compatible with the switching frequency and output current.
  • To optimize efficiency, ensure that the converter is operated within the recommended input voltage range, and that the output voltage is set to the minimum required value. Also, minimize the inductor's DC resistance, use low-ESR capacitors, and optimize the PCB layout for minimal thermal resistance.
  • To minimize EMI and noise, use a common-mode choke and a differential-mode filter, and ensure that the PCB layout is designed to minimize radiation and conduction of noise. Also, use shielding and grounding techniques to reduce noise coupling.
