Description:QR Frequency Jittering; Quiet-Skip Technology; Integrated HV Startup with Brownout Protection; Valley Switching Operation with Valley Lockout; Integrated X2 Capacitor Discharge Capability; NTC Compatible Fault Pin; High Drive Capability: -500 mA / +800 mA; Latch input for OVP and OTP implementation; Minimum Peak Current Modulation for Rapid Frequency Foldback (RFF)
A good PCB layout for the NCP1342AMDCDAD1R2G should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern on the exposed pad to ensure good heat dissipation. The datasheet provides a recommended PCB layout, but additional considerations such as thermal vias and heat sinks may be necessary for high-power applications.
To ensure reliable start-up and shutdown, the input voltage should be ramped up and down slowly (typically 10-20 ms) to prevent inrush currents and voltage spikes. Additionally, the enable pin should be controlled to prevent accidental start-up or shutdown during power-up or power-down sequences.
The critical components that affect the converter's efficiency include the inductor, output capacitors, and MOSFETs. The inductor's core material, inductance value, and DC resistance all impact efficiency. The output capacitors' equivalent series resistance (ESR) and capacitance value also affect efficiency. Finally, the MOSFETs' on-resistance and gate charge impact switching losses.
To troubleshoot issues with the converter's output voltage regulation, first verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check the feedback network components, including the resistors and capacitors, for any signs of damage or degradation. Also, ensure that the output voltage sense lines are properly connected and not subject to noise or interference.
The NCP1342AMDCDAD1R2G has a maximum junction temperature of 150°C. To ensure reliable operation, the device's thermal design should consider the thermal resistance of the package, the PCB's thermal conductivity, and the ambient temperature. A heat sink or thermal interface material may be necessary to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1342AMDCDAD1R2G Overview

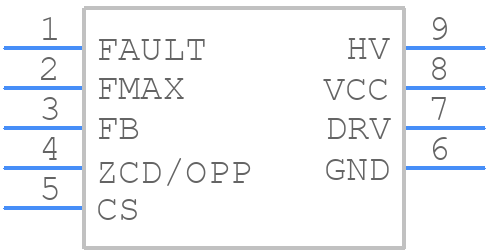

Use the download button to access the NCP1342AMDCDAD1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
