NCP135BMT040TBG - onsemi

Description: 0.4V Fixed Output Voltage option; Ultra-Low Dropout of Typ. 53mV; Guaranteed Output Current from 0mA to 500mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 500mA; Output Active Discharge option available

Download NCP135BMT040TBG Model
Schematic

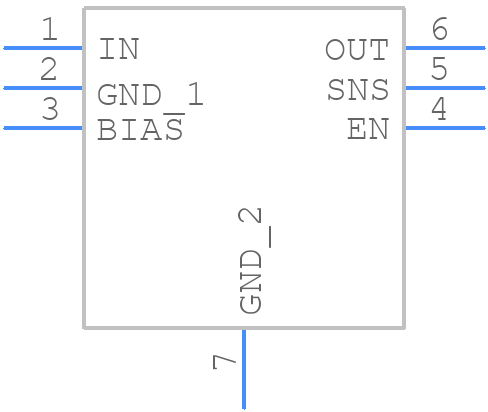

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP135BMT040TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP135BMT040TBG
click to zoom
3D Models
NCP135BMT040TBG - onsemi  - 3D model - Small Outline No-lead - NCP135BMT040TBG
click to zoom

NCP135BMT040TBG Details

  • Manufacturer Part Number:

    NCP135BMT040TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.053 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.4 V

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.00204%

  • Load Regulation-Max:

    0.0005%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    0.404 V

  • Output Voltage1-Min:

    0.396 V

  • Output Voltage1-Nom:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2 mm
