NCP1362AADR2G - onsemi

Description: Constant Voltage Primary−Side Regulation < ±5%; Constant Current Primary−Side Regulation < ±5%; Quasi−Resonant with Valley Switching Operation; Maximum Frequency Clamp (No Clamp, 80, 110 and 140 kHz); Frequency Jittering; Dual Frozen Peak Current; LFF and BO Feature on a Dedicated Pin

Download NCP1362AADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

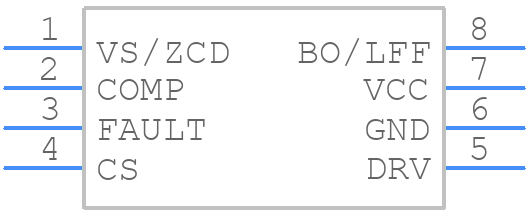

NCP1362AADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1362AADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom
3D Models
NCP1362AADR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom

NCP1362AADR2G Details

  • Manufacturer Part Number:

    NCP1362AADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-05-26

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    130 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

NCP1362AADR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure reliable start-up, ensure that the input voltage rises monotonically and that the input capacitor is properly sized to handle the inrush current. Also, ensure that the output capacitor is properly sized to handle the output voltage ripple.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the NCP1362AADR2G is rated for operation up to 150°C. However, the device's performance and reliability may be affected at high temperatures, and proper thermal management is essential.
  • To troubleshoot issues with the converter's output voltage regulation, check the input voltage, output load, and feedback network. Ensure that the feedback resistors are properly sized and that the output capacitor is properly sized to handle the output voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1362AADR2G Overview

Use the download button to access the NCP1362AADR2G schematic symbol, PCB footprint, and 3D model.
