NCP137AFCT105T2G - onsemi

Description: Ultra-Low Dropout of Typ. 40mV; Adjustable Voltage version; 40 mV typical dropout at the full 700 mA load.; Guaranteed Output Current from 0mA to 700mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 700mA; Output Active Discharge option available

Download NCP137AFCT105T2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

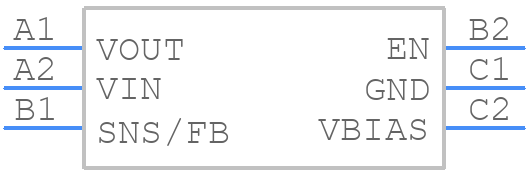

Symbol
NCP137AFCT105T2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP137AFCT105T2G - onsemi PCB footprint - BGA - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE B
click to zoom
3D Models
NCP137AFCT105T2G - onsemi - 3D model - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE B
click to zoom

NCP137AFCT105T2G Details

  • Manufacturer Part Number:

    NCP137AFCT105T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-6

  • Manufacturer Package Code:

    567MV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-07-26

  • Manufacturer:

    onsemi

  • YTEOL:

    9.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.06 V

  • Dropout Voltage1-Nom:

    0.06 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.11 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.00046095%

  • Load Regulation-Max:

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.7 A

  • Output Voltage1-Max:

    1.0605 V

  • Output Voltage1-Min:

    1.0395 V

  • Output Voltage1-Nom:

    1.05 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    0.8 mm

NCP137AFCT105T2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP137AFCT105T2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the NCP137AFCT105T2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure the device is properly heatsinked, and the input voltage is within the recommended range. Also, avoid operating the device at high output currents for extended periods.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input of the NCP137AFCT105T2G. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • To troubleshoot issues with the NCP137AFCT105T2G, check the input voltage, output voltage, and output current. Verify that the device is properly heatsinked and that the PCB layout is correct. Check for any signs of physical damage or contamination. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the NCP137AFCT105T2G is suitable for high-reliability and automotive applications. However, it is essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure the device operates within its SOA. Additionally, consult the datasheet and application notes for specific guidance on using the device in these applications.
