NCP137AFCTC110T2G - onsemi

Description: Ultra-Low Dropout of Typ. 40mV; Adjustable Voltage version; 40 mV typical dropout at the full 700 mA load.; Guaranteed Output Current from 0mA to 700mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 700mA; Output Active Discharge option available

Download NCP137AFCTC110T2G Model

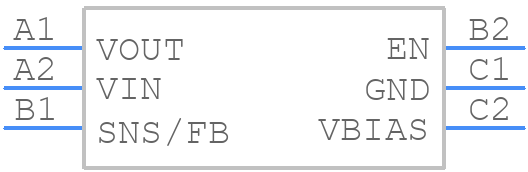

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP137AFCTC110T2G - onsemi PCB footprint - BGA - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE B
click to zoom
3D Models
NCP137AFCTC110T2G - onsemi  - 3D model - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE B
click to zoom

NCP137AFCTC110T2G Details

  • Manufacturer Part Number:

    NCP137AFCTC110T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-6

  • Manufacturer Package Code:

    567MV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2018-09-26

  • Manufacturer:

    onsemi

  • YTEOL:

    9.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.06 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.4 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.000451%

  • Load Regulation-Max:

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.7 A

  • Output Voltage1-Max:

    1.111 V

  • Output Voltage1-Min:

    1.089 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, EXTREMELY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    0.8 mm
