NCP1392BDR2G - onsemi

Description: Minimum frequency adjust accuracy 3 %; Brown-out input; 100 ms PFC delay timer ; 1 A / 0.5 A Peak Current Sink / Source Drive ; Fixed Dead Time Available in 0.3 us, 0.6 us, & 1.1 us

Download NCP1392BDR2G Model
Schematic

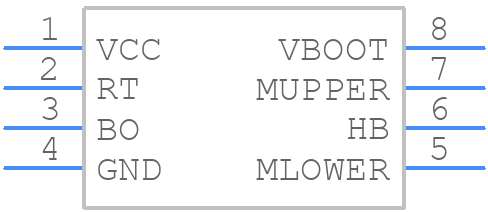

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1392BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCP1392BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCP1392BDR2G Details

  • Manufacturer Part Number:

    NCP1392BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    600 V

  • Supply Voltage1-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.5 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    3.9 mm

NCP1392BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1392BDR2G should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the high-current paths.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance (e.g., 10uF to 22uF). Ensure the capacitors are rated for the maximum input voltage and can handle the output current.
  • The NCP1392BDR2G is rated for operation from -40°C to +125°C (junction temperature). However, the maximum ambient temperature range depends on the specific application and thermal design. Typically, it's recommended to keep the ambient temperature below 85°C for reliable operation.
  • To ensure stability, follow the recommended PCB layout, use a sufficient output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the FB pin and GND. Additionally, ensure the input voltage is within the recommended range, and the output voltage is set correctly using the resistive divider.
  • The NCP1392BDR2G can deliver up to 2A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal design. Ensure the device is properly heatsinked and the output current is within the recommended range to avoid overheating.
