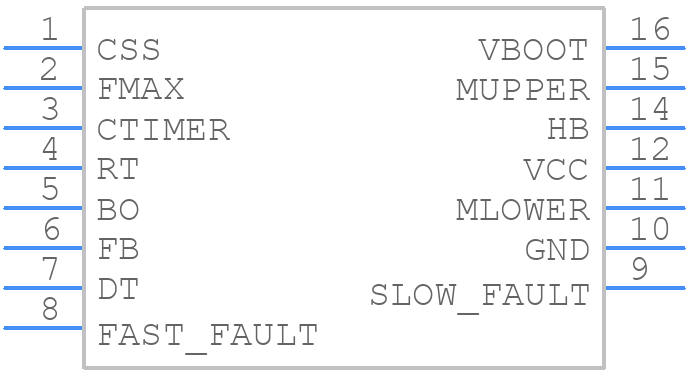

NCP1396ADR2G footprint, schematic symbol and 3D model by onsemi

Symbol

click to zoom

PCB Footprints

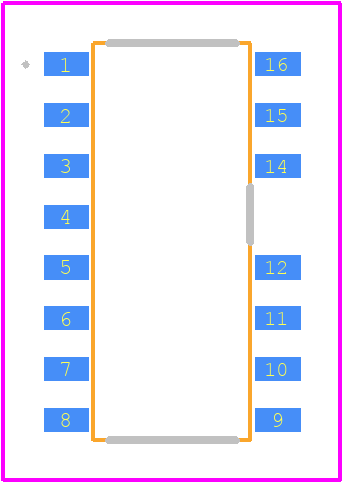

NCP1396ADR2G - onsemi PCB footprint - Other - Other - SOIC−16 NB, LESS PIN 13 CASE 751AM ISSUE O_2026

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP1396ADR2G
Part Number NCP1396ADR2G
Manufacturer onsemi
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC−16 NB, LESS PIN 13 CASE 751AM ISSUE O_2026
Released Date Apr 16, 2019
Last Modified Date Mar 18, 2026 6:27 AM UTC
Pinout / Pin List Click Here (Member Only)

NCP1396ADR2G Details

Manufacturer Part Number:
NCP1396ADR2G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC-16 NB, Less Pin 13
Pin Count:
15
Manufacturer Package Code:
751AM
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
7.2
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
RESONANT CONTROL
Input Voltage-Max:
20 V
Input Voltage-Min:
10.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G15
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
15
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
575 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
