NCP13992CADR2G footprint, schematic symbol and 3D model by onsemi

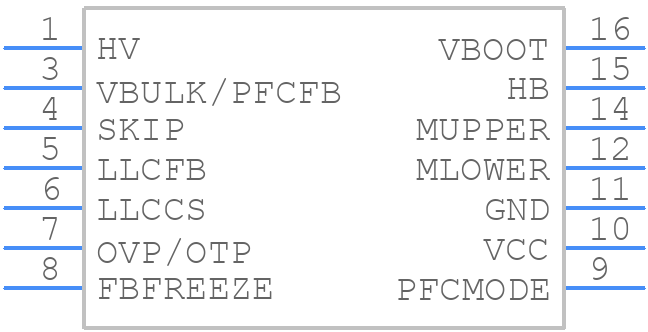

Symbol

click to zoom

PCB Footprints

NCP13992CADR2G - onsemi PCB footprint - Other - Other - NCP13992CADR2G

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP13992CADR2G
Part Number NCP13992CADR2G
Manufacturer onsemi
Pin Count 14
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - NCP13992CADR2G
Released Date May 25, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP13992CADR2G Details

Manufacturer Part Number:
NCP13992CADR2G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC-16 NB
Package Description:
SOIC-16
Manufacturer Package Code:
751DU
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
22 Weeks
Manufacturer:
onsemi
YTEOL:
6.7
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
RESONANT CONTROL
Input Voltage-Max:
12.3 V
Input Voltage-Min:
10 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14/16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
7 mA
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
750 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

NCP13992CADR2G Frequently Asked Questions (FAQs)

A good PCB layout for NCP13992CADR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to decouple the output voltage with a capacitor.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance). Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (1nF to 10nF) in parallel with the output capacitor.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
Yes, NCP13992CADR2G is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for temperature, and the maximum power dissipation is not exceeded. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
To troubleshoot issues with NCP13992CADR2G, start by checking the input and output voltages, and ensure that the device is properly powered. Check the PCB layout and ensure that it meets the recommended layout guidelines. Also, verify that the output capacitor value and type are correct. If the issue persists, consult the datasheet and application notes, or contact onsemi's technical support for further assistance.
