NCP13994AGDR2G - onsemi

Description: Dedicated PFC and LLC Communication; Automatic Deadtime with Maximum Deadtime Clamp; Quiet Skip Mode; Integrated 700 V High Voltage Start Up and X2-Capacitor Discharge Function as well as Gate Drivers; Current Mode Control Scheme; Full Load Operating Frequency Up to 750 kHz

Download NCP13994AGDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

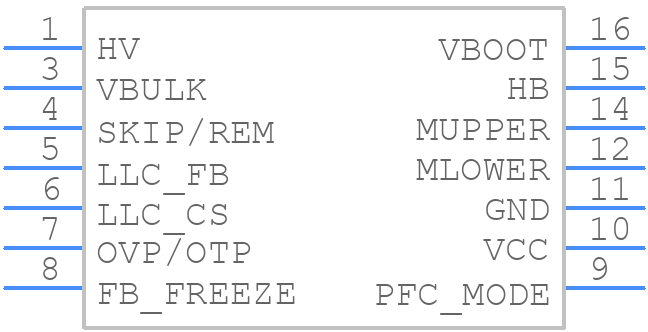

NCP13994AGDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP13994AGDR2G - onsemi PCB footprint - Other - Other - SOIC−16 NB MISSING PINS 2 AND 13 CASE 751DU ISSUE O_2025-1
click to zoom

NCP13994AGDR2G Details

  • Manufacturer Part Number:

    NCP13994AGDR2G

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP13994AGDR2G Overview

Use the download button to access the NCP13994AGDR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13, or try a keyword search, such as Switching Regulator or Controllers
