NCP1399AADR2G - onsemi

Description: Current Mode Control Scheme; High−Frequency Operation from 20 kHz up to 750 kHz; Automatic Dead−time with Maximum Dead−time Clamp

Download NCP1399AADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

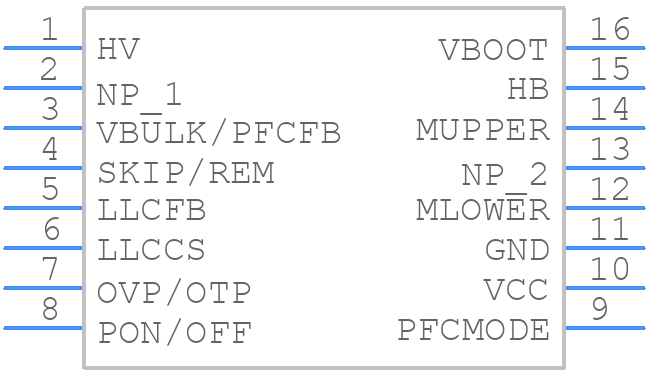

NCP1399AADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1399AADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 NB2
click to zoom
3D Models
NCP1399AADR2G - onsemi - 3D model - Small Outline Packages - SOIC−16 NB2
click to zoom

NCP1399AADR2G Details

  • Manufacturer Part Number:

    NCP1399AADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16 NB

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751DU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1399AADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1399AADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the NCP1399AADR2G operates within its SOA, use a soft-start circuit to limit the inrush current during startup, and add a shutdown circuit to slowly discharge the output capacitors during shutdown. Monitor the input voltage and current to prevent overvoltage and overcurrent conditions.
  • A low-ESR ceramic or film capacitor with a value of 10-22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low impedance at the switching frequency.
  • Optimize the output filter design by selecting the right output capacitor value and type, and adding a small series resistor to dampen the output filter. Use a low-ESR capacitor with a value of 10-47uF and a series resistor of 1-10 ohms.
  • A good thermal management strategy for the NCP1399AADR2G involves using a heat sink with a thermal resistance of less than 10°C/W, applying a thermal interface material, and ensuring good airflow around the device. Keep the ambient temperature below 85°C and ensure the device is not exposed to high humidity.
