A good PCB layout for the NCP1399ACDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the output capacitor is properly sized and placed close to the IC. Also, ensure the input capacitor is properly sized and placed close to the input voltage source. Additionally, use a low-ESR output capacitor and a low-impedance input source to minimize the risk of oscillation.
The NCP1399ACDR2G can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
The output voltage of the NCP1399ACDR2G can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the internal reference voltage (typically 1.25V).
The NCP1399ACDR2G can deliver up to 2A of output current, but it's recommended to keep the output current below 1.5A to ensure reliable operation and to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1399ACDR2G Overview

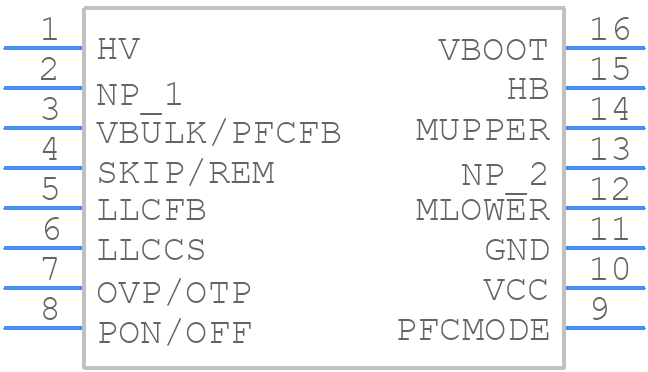

Use the download button to access the NCP1399ACDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
