A good PCB layout for the NCP1399AMDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the feedback resistors are of high precision and the layout is well-designed to minimize noise and parasitic inductance. Additionally, a soft-start circuit can be used to prevent inrush currents during startup.
The NCP1399AMDR2G is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the NCP1399AMDR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
To troubleshoot issues with the NCP1399AMDR2G, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are of the correct value and are properly connected. Check for any signs of overheating, and ensure the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1399AMDR2G Overview

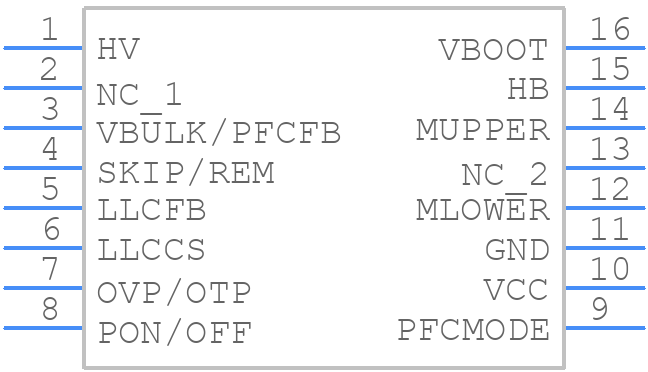

Use the download button to access the NCP1399AMDR2G schematic symbol, PCB footprint, and 3D model.
