Description:Ultra-Low Dropout of Typ. 40mV; Adjustable Voltage version; 50 mV typical dropout at the full 1 A load.; Guaranteed Output Current from 0 to 1 A; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 1 A; Output Active Discharge option available
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
Using a different inductor value than recommended can affect the converter's performance, stability, and efficiency. A smaller inductor value may result in higher ripple current and reduced efficiency, while a larger value may lead to increased size and cost. It's essential to consult the datasheet and application notes for guidance on inductor selection.
To troubleshoot issues with the device's soft-start feature, check the soft-start capacitor value and ensure it's within the recommended range. Verify that the soft-start pin is properly connected and not shorted to any other pin. Also, check the input voltage and ensure it's within the specified range. If issues persist, consult the datasheet and application notes for further guidance.
To mitigate EMI issues with the NCP139AFCT120T2G, use a shielded inductor, place the device and inductor close together, and use a common-mode choke. Additionally, ensure good PCB layout practices, such as keeping the power traces short and away from sensitive nodes, and using a solid ground plane. Consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP139AFCT120T2G Overview

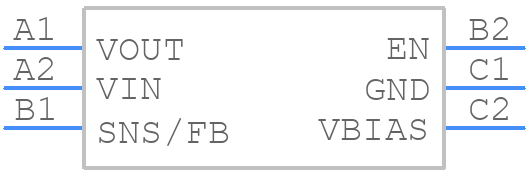

Use the download button to access the NCP139AFCT120T2G schematic symbol, PCB footprint, and 3D model.
