NCP139AFCTC05ADJT2G - onsemi

Description: Ultra-Low Dropout of Typ. 40mV; Adjustable Voltage version; 50 mV typical dropout at the full 1 A load.; Guaranteed Output Current from 0 to 1 A; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 1 A; Output Active Discharge option available

Download NCP139AFCTC05ADJT2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

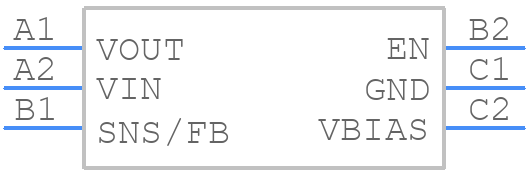

NCP139AFCTC05ADJT2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP139AFCTC05ADJT2G - onsemi PCB footprint - BGA - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE A
click to zoom
3D Models
NCP139AFCTC05ADJT2G - onsemi - 3D model - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE A
click to zoom

NCP139AFCTC05ADJT2G Details

  • Manufacturer Part Number:

    NCP139AFCTC05ADJT2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-6

  • Package Description:

    WLCSP-6

  • Manufacturer Package Code:

    567MV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.08 V

  • Dropout Voltage1-Nom:

    0.05 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Line Regulation-Max (%/V):

    0.01

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2.6 A

  • Output Voltage1-Max:

    3 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.8 mm

NCP139AFCTC05ADJT2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using long traces or wires between the device and the capacitors, as this can cause oscillations.
  • The maximum ambient temperature for reliable operation is 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the device's performance, efficiency, and stability.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and current waveforms to identify any anomalies.
