A good PCB layout for the NCP1568S02DBR2G should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power lines.
Choose input capacitors with a voltage rating above the maximum input voltage, and output capacitors with a voltage rating above the output voltage. For the NCP1568S02DBR2G, a 10uF to 22uF ceramic capacitor is recommended for both input and output. Ensure the capacitors have a low ESR (Equivalent Series Resistance) to minimize power losses.
The NCP1568S02DBR2G has an operating ambient temperature range of -40°C to +125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat dissipation to prevent overheating.
To ensure stability, follow the recommended PCB layout, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Additionally, add a small ceramic capacitor (e.g., 10nF) between the FB pin and GND to filter noise and prevent oscillation.
The NCP1568S02DBR2G has a maximum output current capability of 2A. However, the actual output current may be limited by the input voltage, output voltage, and thermal design. Ensure the device is operated within the recommended specifications to prevent overheating and damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1568S02DBR2G Overview

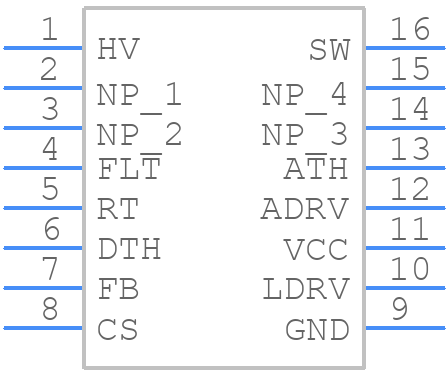

Use the download button to access the NCP1568S02DBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP15,
or try a keyword search, such as Switching Regulator or Controllers
