The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable start-up of the converter, it is recommended to add a soft-start circuit to limit the inrush current during start-up, and to use a sufficient input capacitance to filter out noise and voltage transients. Additionally, the input voltage should be ramped up slowly to prevent excessive inrush current.
The maximum allowed output capacitance for stable operation depends on the specific application and operating conditions. As a general guideline, the output capacitance should be limited to 10uF to 22uF to prevent oscillations and ensure stable operation. However, it is recommended to consult the application note and perform stability analysis to determine the optimal output capacitance for the specific design.
To troubleshoot issues with the converter's output voltage regulation, it is recommended to check the input voltage, output voltage, and feedback voltage using an oscilloscope or multimeter. Verify that the feedback voltage is within the specified range, and that the output voltage is within the desired tolerance. Also, check for any signs of oscillation or instability, and ensure that the output capacitance is within the recommended range.
The recommended EMI filtering components include a common-mode choke, X-capacitors, and Y-capacitors. The layout guidelines involve placing the filtering components close to the input pins, using a star-point grounding scheme, and minimizing the loop area of the input and output traces to reduce radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1594AMNTXG Overview

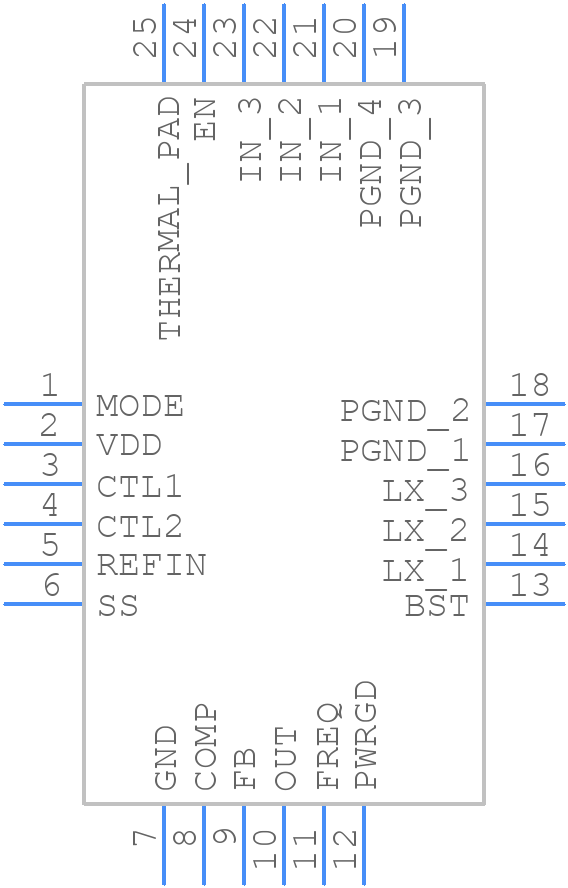

Use the download button to access the NCP1594AMNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP15,
or try a keyword search, such as Switching Regulator or Controllers
